Product Details:
Payment & Shipping Terms:
|
| Material: | Al /iron | Brightness: | 7500cd |
|---|---|---|---|
| Color: | Full Color | Waterproof: | IP65 |
| Control System: | Sheenled | Pixel: | 8mm |
| High Light: | led video billboard,outdoor advertising led display |
||
Sheenled control wifiless,4G,3G,usb,hub 75 outdoor led advertising billboard
Specifications
1,
High brightness,easy installation
2, Energy saving,Easy maintenance
3, Advanced dot adjusting
4, 3G,WIFI control

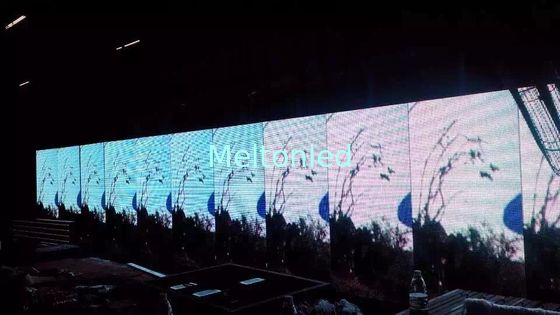

Super brightness full color LED billboard advertising
Function and Technology characters:
1. Show all kinds of word,text,graph,pictures,flashes,video,2-dimension,3-dimension carton and any other formats with your PC does synchronously.
2.Different signal resources input are acceptable,such as TV,HCTV,S-video,NTSC/PAL,DVI,AVI,VGA,SDI,MOV,MPG,HD-SDI,ect.
3,Self-adjustment function
Automatically adjusts outdoor LED display brightness to suitable level through outdoor environment condition
4,It can be used in advertisement,stage,stadium,exhibition,TV-Show,mansion video wall,shopping mall,banks,schools,bus station,airport,gym,market,factories,monitoring certers,hospitals,bars etc.
1) System structure
2) Led Module
| Module Size(W*H) | 192*192mm | Pixel Configeration | 1R1G1B |
| Pixel Pitch | 6mm | Resolution(W*H) | 32*32dots |
| Pixel Density | 27,777dots/m2 | Driving Method | 1/8 scanning |
3) Led cabinet
| Cabinet Size(W*H) | 960*960mm or customized | Module Qty | 25pcs |
| Cabinet Resolution(W*H) | 160dots*160dots | Cabinet Pixel | 25600 |
| Weight | about 35kg/pc | Area | 0.9216(m2) |
| Average Power Consumption | 240W/m2 | Max Consumption | 600W/m2 |
4) Led Video Wall Technical Parameter
| Operating Humility | 10%~90%RH |
| Oprating Temprature | -20℃~+50℃ |
| Optimal Viewing Distance | 10m-60m |
| Display Color | 1,070,000,000 |
| Gray Scale | 65536grade |
| Bightness control | 256grade |
| Frame Frequency | 60Hz |
| Refresh speed | >300HZ |
| Power supply | 220V/50HZ |
| MTBF | ≥10,000hours |
| Life span(50% brightness) | ≥100,000hours |
| Control Mode | Synchronization with PC |
| Input Signal Format | VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-video,TV |
| Operating System | WINDOWS(98,2000,XP,Vista) |
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service;
4, Promote delivery;
5, Energy-saving;
6, Small order accepted.
| Training | Free of charges;In our workshop, we provide all the training including process of operation, installation, maintenance, system set up, etc. |
| Warranty |
1, 2years, .From beginning of installation finished the led display, During it , we will be responsible for all the quality problem. 2, After the completion of the project, we will conduct life maintenance of the system continuously and update the and software. 3, For the hardware equipment, we only collect expenses on components. |
| Guarantee |
1, All the life time for Technology support , system update ,maintenance . 2, We guarantee that the equipment we provide are brand new, complete and unused before delivery . |
|
Remark
|
1. We are manufacturer of LED display. We only provide the Screen, Cabinet and module, but do not take charge for the installation in overseas; Technical support is available. 2. The above offer included the cabinet, power supply, power cord,and other basic components; etc. 3. The above offer do NOT included the delivery, insurance, installation and debugging cost; 4. Packing with Ply-wood box, or Carton ; If need flight case packing, up cost will be USD180/PC, 2-4cabinets/case 5.Problems during use. some spare parts for you, once the screen get problems, please follow up below steps to solve it: Step1: Take some pictures about the working status of the screen; Step2: Replace the broken cabinet by the new cabinet; Step3: Contact with us, and send the pictures to us, we will help you to analyze the problems. Step4: If it is necessary, please post it to our company, we will maintain it for you as soon as possible, and then deliver it to you. |
