Product Details:
Payment & Shipping Terms:
|
| Product Name: | Led Advertising Billboard | Application: | Outdoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixel Pitch: | 10mm |
| Resolution(W*H): | 16dots*16dots | Max Consumption: | 750W |
| High Light: | led video billboard,outdoor advertising led display |
||
Electronic Outdoor Led Advertising Billboard P10 1R1G1B Aluminum or Iron
1.led outdoor waterproof video
2.Wide viewing angle video led
3.High brightness
4.Energy saving
5.CE.RoHS

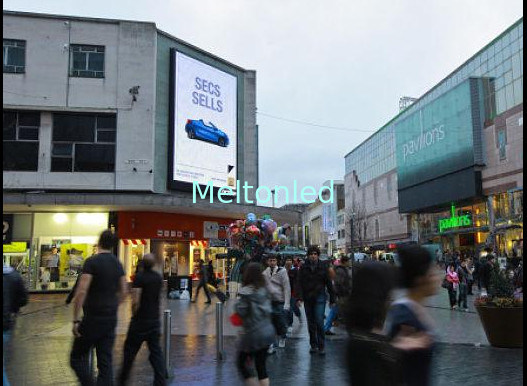

OUTDOOR waterproof led video from china factory
Designed to withstand adverse weather conditions and to astound audiences and make them enjoy flickering-free live videos in sharp and brilliant images. Retop Outdoor display solutions present the exceptional performance in crowded outdoor settings where are clearly visible, even the most complex advertising images and logos are precisely rendered, making it the display technology of choice for all brands.
Product Features
■ Superb brightness, color uniformity and reproduction. Brightness variances within +/- 2.5%;
■ Extremely weather-proof, adapt to different kinds of environment;
■ Support automatic fault detection;
■ Refresh rate up to 4,200Hz, completely flickering-free for live videos;
■ Proprietary image processing produces sharp, brilliant images – unmatched by industry competition;
■ 6000 : 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away;
■ 6,6000 nits guarantees the screen stays brighter longer, providing 100,000 hours of continuous use.
1)Outdoor led video System structure
2)outdoor led video Module
|
Module Size(W * H) |
160mm*160mm |
Pixel Configeration |
1R,1G,1B |
|
Pixel Pitch |
10mm |
Resolution(W*H) |
16dots*16dots |
|
Pixel Density |
10000 dot / m2 |
Driving Method |
1/4 scan Current |
3)led video cabinet
|
Cabinet Size(W * H) |
960mm*960mm |
Module Qty |
36pcs |
|
Cabinet Resolution(W * H) |
96dots*96dots |
Cabinet Pixel |
9216 |
|
Weight |
50kg/pc |
Area |
0.9216(m2) |
|
Avarage Power Consumption |
450W/m2 |
Max Consumption |
750W |
4)Program diagram
5)Outdoor led video technical parameter
| Product model number | Mled-PH10-864 |
| 1.Pixel | |
| Pixel L ED | 348 |
| Pixel Configuration | 1 R, 1G , 1B |
| Wave length ( nm ) | R: 800-1000 , G:2040-2450, B: 360-430 |
| Pixels Pitch ( mm ) | 10 |
| 2 . Module | |
| Module Size ( mm ) | 160 * 160 * 20 |
| Module Pixels (dot) | 16 * 16 |
| 3.Unit box | |
| Module quantities in a unit box | 6 (L) * 6 ( H ) |
| Unit box size ( mm ) | 960 (L) * 960 (H) * 150 |
| Unit box Pixels ( dot ) | 96 * 96 |
| Unit box material | Aluminum or Iron |
| Unit box weight (kg) | Aluminum : 40 or Iron : 55 |
| 4.Packaging | |
| Packing Way | Two unit boxes |
| Packing box material | Wooden case or Flight box |
| 5.electricity parameter | |
| Pixel density (dots/ m2 ) | 10000 |
| White Balance Brightness ( cd/m2 ) | ≥7500 (adjustable) |
| Color temperature ( K ) | 5000-9500 (choice by user) |
| Brightness Adjusted | 100 grade by software or by Auto-optic induced. |
| View Angel | Horizontal 120 ° ; Vertical 70 ° |
| Best viewing distance ( m ) | 16-150 |
| Communication distance ( m ) | Internet Wire : 120 Fiber Cable : 1000 |
| Screen work Method | 1/4 scan |
| LED driving method | Constant driving current |
| Gray Grades | 16384 levels for each color |
| Display Color | 4 , 398 , 046 , 511 , 104 |
| Refresh Frequency ( Hz ) | ≥ 800 |
| Picture display method | Dots to dots display synchronized with CRT |
| Signal interface | DVI |
| Input signal | Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV |
| Display format | 800 * 600 , 1024 * 768 , 1280 * 1024 |
| Software | Support windows series system |
| Protection grades | IP 65 |
| Working temperature (ºC ) | -10 +50 |
| Humidity ( RH ) | Up to 95 |
| Stored temperature ( ºC) | -30 +70 |
| Screen Lifetime(hours) | ≥100, 000 |
| Out of controlled dots | ≤3/10, 000 (Out of controlled dots means the pixels of which the brightness, and the wave length are both >10% depart to the normal one) |
| Whole display flatnes | Less than 1mm Juncture |
| Maintance way | Back-maintained or front-maintained, |
| modules displaced | |
| Switch power supply |
Switch power supply (include CE/GS or UL/CSA certificate) 110V/60HZ , 220V/50HZ |
| Power Consumption ( w /m 2 ) | Max : 750 , Average: ≥ 300 |
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service.
