P16 Commercial Full Color Outdoor Led Advertising Billboard DVI 220V / 50HZ

China P16 Commercial Full Color Outdoor Led Advertising Billboard DVI 220V / 50HZ supplier

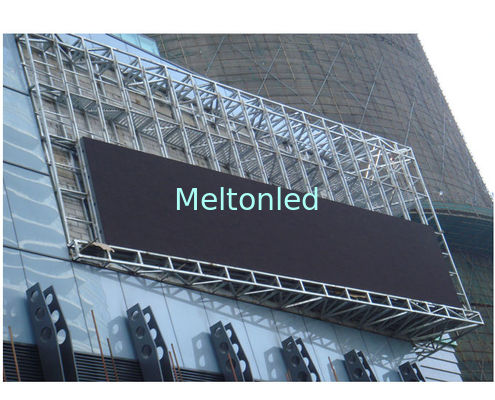

Large Image :  P16 Commercial Full Color Outdoor Led Advertising Billboard DVI 220V / 50HZ

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Meltonled
Certification: CE, RoHS, ISO,FCC,UL
Model Number: P16-57M

Payment & Shipping Terms:

Minimum Order Quantity: 1pc/1sqm
Price: 1-100000usd
Packaging Details: Anti-shaking wooden case/flight case/carton
Delivery Time: 8-25 days
Payment Terms: 35% T/T as prepayment,65% T/T as balance at factory
Supply Ability: >500sqm/month
Delivery term: Ex-work/FOB/CIF/DDU
Contact Now
Detailed Product Description
Product Name: Led Advertising Billboard Feature: Waterproof IP 65
Application: Outdoor Tube Chip Color: Full Color
Pixel Pitch: 16mm Packing Box Size (mm): 1150 * 950 * 480





P16 Commercial Full Color Outdoor Led Advertising Billboard DVI 220V / 50HZ





Applications:



advertising media,  sports stadiums,  airport station integrated information dissemination,  business

establishments,  public area.




Specifications:



Product model number

Mled-PH16-1

1.Pixel

Pixel L ED

546

Pixel Configuration

2 R,  1G ,  1B

Wave length ( nm )

R: 626-628 ,  G: 518-520 ,  B: 466-468

Pixels Pitch ( mm )

16

2 . Module

Module Size ( mm )

256 * 128 * 20

Module Pixels (dot)

16 * 8

3.Unit box

Module quantities in a unit box

4 (L) * 6 ( H )

Unit box size ( mm )

1024 (L) * 768 (H) * 180

Unit box Pixels ( dot )

64 * 48

Unit box material

Aluminum or Iron

Unit box weight (kg)


Aluminum : 42 or Iron : 55


4.Packaging

Packing Way

Two unit boxes packed into one

Packing box material

Wooden case or Flight box

Packing box size (mm)

1150 * 950 * 480

5.electricity parameter

Pixel density (dots/ m 2 )

3906

White Balance Brightness ( cd/m 2 )

≥ 8500

Color temperature ( K )

5000-9500 (choice by user)

Brightness Adjusted

100 grade by software or by Auto-optic induced.

View Angel

Horizontal 110 ° ; Vertical 70 °

Best viewing distance ( m )

16-150

Communication distance ( m )

Internet Wire : 120 Fiber Cable : 1000

Screen work Method

Static

LED driving method

Constant driving current

Gray Grades

16384 levels for each color

Display Color

4 ,  398 ,  046 ,  511 ,  104

Refresh Frequency ( Hz )

≥ 9600

Picture display method

Dots to dots display synchronized with CRT

Signal interface

DVI

Input signal

Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV

Display format

800 * 600 ,  1024 * 768 ,  1280 * 1024

Software

Support windows series system

Protection grades

IP 65

Working temperature (ºC )

-10  +50

Humidity ( RH )

Up to 95

Stored temperature ( ºC)

-30  +70

Screen Lifetime(hours)

≥100, 000

Out of controlled dots

≤3/10, 000 (Out of controlled dots means the pixels of which the brightness,

and the wave length are both >10% depart to the normal one)

Whole display flatnes

Less than 1mm Juncture

Maintance way

Back-maintained or front-maintained,
modules displaced

Switch power supply

Switch power supply (include CE/GS or UL/CSA certificate)

110V/60HZ ,  220V/50HZ

Power Consumption ( w /m 2 )

Max : 1200 ,  Average: ≥ 650



1. LED Display Structure



P10 Outdoor LED Display Screen Supplier



2. LED Display Control System Diagram:



 P10 Outdoor LED Display Screen Supplier



3. LED Display Instal Structure:

 P10 Outdoor LED Display Screen Supplier



Competitive Advantage:



1,  Good quality;

2,  Good price;

3,  Good 24hours service.
