Product Details:
Payment & Shipping Terms:
|
| Name: | Outdoor Full Waterproof 8000 CD LED DisplayP10 Visual Advertising LED Billboard Screen | Application: | Flight Dynamic Display |
|---|---|---|---|
| Color: | Full Color | Screen Dimension: | 2x1mts/2x2mst/3x2mts |
| Module Size: | 320mm*160mm | Brightness: | High Brightness |
| Warranty: | 3 Years | Usage: | Outdoor |
| Highlight: | digital advertising billboards,outdoor advertising led display |
||

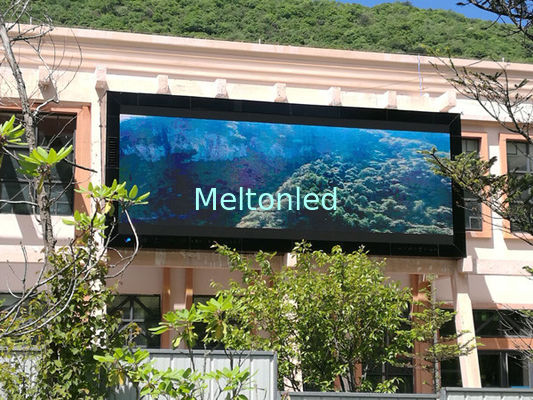

Outdoor Full Waterproof 8000 CD LED DisplayP10 Visual Advertising LED Billboard Screen
TECHNICAL PARAMETERS
| Unit Module | Item | Parameter |
| Model Number | P10-4S | |
| Module size | 320mm*160mm | |
| Pixel pitch | 10mm | |
| Pixels Density | 10000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | DIP346 | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Max Power | 35W | |
| Module thickness | 16-18mm | |
| Weight | 0.88kg | |
| Drive type | Constant drive | |
| Scan mode | 1/4scan | |
| Port type | hub75 | |
| Brightness of white balance | ≥7500cd/m2 |
|
LED Cabinet |
Dimension | 640mm*640mm |
| Monomer Module Number | 8 | |
| Power supply | 5V/60A*1 pcs | |
| Thermal discharge | anto | |
| Pixel per cabinet | 64*64dots | |
| Best viewing distance | 6M～40M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ working:-20℃～+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 80mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 270W/㎡ | |
| Max.Power consumption |
≤680W/m2
|
|
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Fire rate | Grade one | |
| Display Mode | ≥800*600/1024*768 |
FAQ
1. How long could i receive the inquiry reply ?
A: You will get a reply within 12 hours.
2.How to proceed an order for led display?
A:Firstly let us know your requirements or application
Secondly we quote according to your requirements or our suggestions.
Thurdly customer confirms the design document and places deposit for formal order.
Fourthly we arrange the production
3.What kind of led display do you offer ?
A: Different product offer different time frame warranty, but all product here we offer 2 year at least warranty
4.How long will it take to deliver goods ?
A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working days after we get
your payment.
5.How is the after sales service ?
A: We have a professional team which is in all around the world , also a service hot-line dealing with your complains and
feedback.We also offer 24-hour online service to help you solving problems1. How long could i receive the inquiry reply ?
