Product Details:
Payment & Shipping Terms:
|
Product Name: | Indoor Portable Digital Led Screen Advertising P2.5 P3 Media Poster LED Display | Brightness: | 1400cd/sqm |
---|---|---|---|
LED Chip: | SMD 2121 | Power Supply: | G-energy Slim Module |
Scan Mode: | 1/32scan | Module Size: | Customized |
Warranty: | 2 Years | ||
Highlight: | led video billboard,digital advertising billboards |
Product description

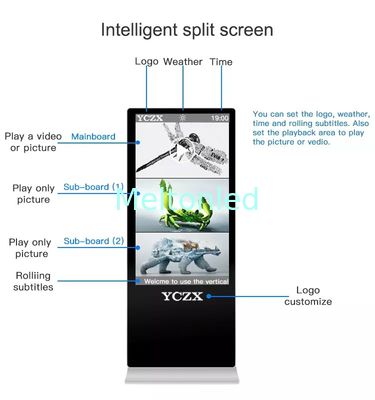

1.Rapid release, smart control: wireless control, program edit, split screen ect via phone, computer or PDA at your avaliable time
2.USB version One -click loop playback: Automatic identified system : plug into USB driver or SD card can reslize automatically loop as soon as booting
3.Ultrathin, preciously simple:Extremely simple design, light weight to realize turely ultra-thin and portable.
Unit Module | Item | Parameter |
Model Number | P2.5-32S | |
Module size | 160mm*160mm or 320X160mm | |
Pixel pitch | 2.5mm | |
Pixels Density | 160000dots/m2 | |
Pixel configuration | 1R1G1B | |
Package mode | SMD2121 | |
Pixel resolution | 64dots(W)*64 dots(H) 128dots(W)*64 dots(H) | |
Max Power | 25W or 50W | |
Module thickness | 15mm(not including magnet) | |
27mm(including magnet) | ||
Weight | 0.232kg or 0.4kg | |
Drive type | Constant drive | |
Scan mode | 1/32scan | |
brightness |
1200cd/m2
|
Power | Working voltage | AC220V±10% |
Average Power consumption | <320W/㎡ | |
Max.Power consumption | <780W/㎡ | |
Current | <18mA(single LED) | |
Control system | CPU | Pentium4 or above P4 |
Operation system | WIN98/2000/NT/XP/WIN7 | |
Control method | Synchronization | |
Main technical parameter |
Driving device | Constant drive IC |
Refresh frequency | >1920HZ | |
Grey scale/colors |
65536grade 16.7M 65536gray level/16.7M colors |
|
MTBF | >9000hours | |
Power switch | Automatic switch | |
Display Mode | ≥800*600/1024*768 |
