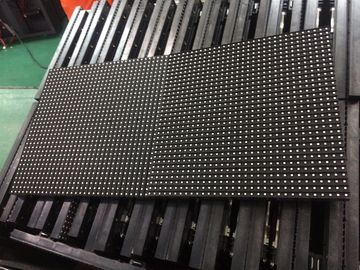

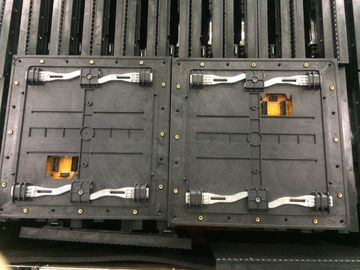

Outdoor P10 LED Module Front Maintenance Full Color LED Display Module 1R1G1B

Outdoor P10 LED Module Front Maintenance Full Color LED Display Module 1R1G1B
Outdoor P10 LED Module Front Maintenance Full Color LED Display Module 1R1G1B Outdoor P10 LED Module Front Maintenance Full Color LED Display Module 1R1G1B Outdoor P10 LED Module Front Maintenance Full Color LED Display Module 1R1G1B Outdoor P10 LED Module Front Maintenance Full Color LED Display Module 1R1G1B Outdoor P10 LED Module Front Maintenance Full Color LED Display Module 1R1G1B Outdoor P10 LED Module Front Maintenance Full Color LED Display Module 1R1G1B

Large Image :  Outdoor P10 LED Module Front Maintenance Full Color LED Display Module 1R1G1B

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Meltonled
Certification: CE, RoHS, ISO,FCC,UL
Model Number: P10-F2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc/1sqm
Price: 800usd/sqm
Packaging Details: Anti-shaking wooden case/flight case/carton
Delivery Time: 7-15 working days
Payment Terms: 35% T/T as prepayment,65% T/T as balance at factory
Supply Ability: >500sqm/month
Detailed Product Description
Product Name: Led Billboard Display Application: Outdoor
Tube Chip Color: Full Color Pixel Pitch: 10mm
Pixel Composition: 1R1G1B Cabinet Size: 960*960 Mm
Module Size: 320*320mm Scanning: 1/4s
High Light:

digital led billboards

,

outdoor advertising led display

,

P10 Front Maintenance LED Display





Hotsale new design Outdoor front access p10 LED modulefront maintenance P10 outdoor LED display module front



Specification





Items P10 Outdoor Full Color Module
Module Pixel Pitch 10mm
Pixel Density (dot/m²) 10000
Pixel Configuration 1R1G1B
Packaged Type of LED DIP346/SMD3535
Module Size(mm) 320X320
Module Resolution 32X32

Technical

Parameter

Brightness(cd/m²) 7000-8000
Max Power Consumption(w/m²) 350
Best Viewing Distance(m) 10-30
Viewing Angle 120°H/120°V
Drive Mode Constant Current drive 1/4 scan
Driving Driving IC MBI5026 / MBI5024
Frame-change Frequency ≥60 Hz/s
Refresh Rate ≥600Hz/s
Gray Grade Level 4096 Grades
Color 1073741824 kinds of colors
Control System Synchronization Control
Transmission Distance Reticle≤100M;Multi-mode Fiber≤500M; Single-mode Fiber≤10000M
Out of Control Rate≤0.0001
Lifespan ≥100000H
Driving Power 5V
Working Voltage AC220V±10% 47HZ~60hz
Working Temperature -10°C~+55°C
Working Humidity 5%RH~85%RH





















































Outdoor P10 LED Module Front Maintenance Full Color LED Display Module 1R1G1B 0



FAQ

1. What is LED?
LED is sanded for Light Emitting Diode, a kind of semiconductor which is used to give and receive the electronic signal into infrared rays or light, using the characteristics of compound semiconductor. This is used for household appliances, remote controller, electric bulletin board, various kinds of automation appliances.
2. What are Pixel Pitch, Pixel Density, LED QTY, and Pixel Configuration?
Pixel Pitch is the distance between neighboring pixels.
Pixel Density is the quantity of pixels per square meter.
LED QTY is the quantity of LED lamps per square.
Pixel Configuration is the description of the consistence of a pixel, for instance, we use 1 red lamp, 1 green lamp, and 1 blue lamp to compose a pixel, the pixel configuration is 1R1G1B.
3. What are LED Type, Module size and Module resolution?
LED Type is the description of LED lamp, for instance, the brand, the shape in physical, the size of the lamp, etc.
Module size is the measurement of a module.
Module resolution is the number of pixels per module.
