Product Details:
Payment & Shipping Terms:
|
| Product Name: | Led Billboard Display | Usage: | Outdoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixel Pitch: | 6mm |
| Pixel Composition: | 1R1G1B | Brightness: | More Than 7500CD/m2 |
| High Light: | digital led billboards,outdoor advertising led display,P6 Led Advertising Billboard |
||
P6 Led Billboard Display Outdoor Led Full Color Display Advertising Billboard
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service;
4, Promote delivery;
5, Energy-saving;
6, Small order accepted.
P6 OUTDOOR SMD 3IN1 TECHNICAL PARAMETERS
|
Unit Module |
Item | Parameter |
| Model Number | P6-8S | |
| Module size | 192mm*192mm | |
| Pixel pitch | 6mm | |
| Pixels Density | 27777dots /m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD3535/2727 | |
| Pixel resolution | 32dots(W)*32dots(H) | |
| Max Power | 35W | |
| Module thickness | 17.05mm | |
| Weight | 0.369kg | |
| Drive type | Constant drive | |
| Scan mode | 1/8scan | |
| Port type | HUB75 | |
| Brightness of white balance | >6000cd/m2 |
|
LED Cabinet |
Dimension | 576mm*576mm |
| Monomer Module Number | 9pcs | |
| Power supply | 5V/60A*1 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 6M 40M | |
| Best viewing angle | 160 (W) 120 (H) | |
| Temperature |
storage:-35 +85 working:-20 +50 |
|
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
|
Power |
Working voltage | AC110V 220V 10% |
| Average Power consumption | <380W/sqm | |
| Max.Power consumption | <950W/sqm | |
| Current | <20mA(single LED) | |
|
Control system |
CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | >1200HZ | |
| Grey scale/colors |
16384 , 16.7M 16384gray level/16.7M colors |
|
| MTBF | >9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |

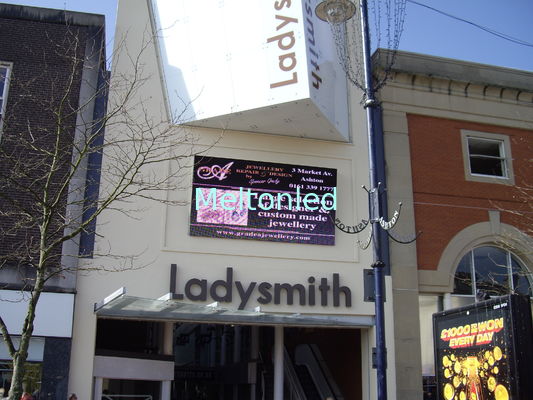

Applications: Public area,park,square,shopmall,hotel,stage,concert,commercial places.
