Product Details:
Payment & Shipping Terms:
|
| Product Name: | P4.8 Led Floor P3.9,led P6.25,led Floor Video Wall Indoor Led Screens Rental LED Display 288mm*288mm | Application: | Indoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixel Pitch: | 4.8mm |
| Control Mode: | Synchronism | Package Mode: | 3528 |
| Control Card: | NOVA STAR | Module Size: | 288x288mm |
| Highlight: | P6.25 Led Floor Video Wall,full color Indoor Led Screens Rental,Rental LED Display 288mm*288mm |
||
P4.8 led floor p3.9,led p6.25,led floor Video wall Indoor Led Screens rental LED Display 288mm*288mm
Speification:
LED parameters
| Item | Luminous Intensity | View Angle(H/V) | Wavelength | Test Condition |
| Red LED | 400-420mcd | 160°/120° | 620-625nm | 25℃,20mA |
| Green LED | 1200-1280mcd | 160°/120° | 520-525nm | 25℃,20mA |
| Blue LED | 190-220mcd | 160°/120° | 465-470nm | 25℃,20mA |
Module Parameters
| Item | Parameter | |
| Model number | P4.8 | |
| Module size | 288x288mm | |
| Pixel pitch | 4.8mm | |
| Pixel density | 43402dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD3528 | |
| Pixel resolution | 60dots(W)*60dots(H) | |
| Max Power | 50W | |
| Module thickness | 22mm | |
| Weight | 0.5kg | |
| Drive type | constant drive | |
| scan mode | 1/16scan | |
| Port type | hub909 | |
| Brightness of white balance | ≥1200cd/m2 |
Cabinet Parameters
| Dimension | 576mm*576mm | |
| Monomer Module Number | 4 | |
| Power supply | 5V/60A*2pc | |
| Thermal discharge | Anto | |
| Pixel per cabinet | 120*120dots | |
| Best viewing distance | 6M~40M | |
| Best viewing angle | 160°(W)120°(H) | |
| Temperature |
storage:-35°C~+85°C working:-20°C~+50°C |
|
| Relative humidity | 10%~95% | |
| Thickness | 80mm |
Screen Parameters
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 300W/m2 | |
| Max Power consumption | 600W/m2 | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation systerm | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥800HZ | |
| Grey scale/colors | 4096 gray level/16.7M colors | |
| MTBF | ≥10000hours | |
| Fire rate | grade one | |
| Display Mode |
≥800*600/1024*768 |
FAQ
Q1: What's the pixel pitch for choice?
A1:
indoor series: P3.9, P4.8
indoor series: P4.46, P6.25
indoor series: P5, P7.5, P9.375
outdoor series: P4.8
outdoor series: P4.8, P5.9, P6.9, P7.8, P8.9
outdoor series: P7.5, P9.375, P15
Q2: Where is it used for?

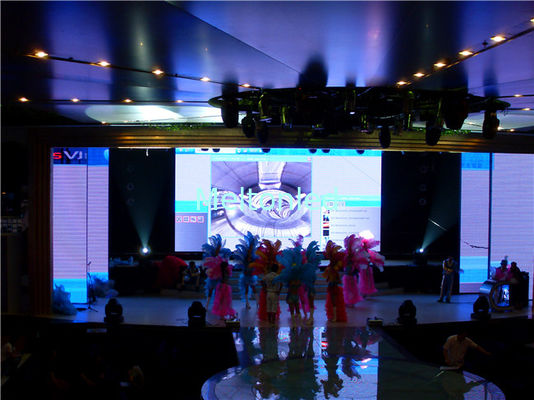

A2: performance shows, sports activities, advertising, information publishing, celebrating activities, hotel entertainment ect.
One type realize Multi-Function for creative stage led screen,also can use as advertising led screen, sky backdrop curtain, stadium screen, and dance floor.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with several different controlling systems,such as Nova, Mooncell,linsn and so on.
Q4: What after service can provide?
A4: One year warranty
24h online technical supports
Back-visiting customer for each yaer
Sending technical personnel to the scene in customers significant activities
1. Your inquiry related to our products or price will be replied in 24hrs.
2. The size can be change as you require, we can help you to design and put into product.
3. What we show is some of our current modules, welcome to give us your own ideas.
4. Protection of your sales area, ideas of design and all your private information.
5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win).
