Product Details:
Payment & Shipping Terms:
|
| Product Name: | P2.5 Indoor High Refresh Rate LED Screen Module Wholesalers | Application: | Indoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixel Pitch: | 2.5mm |
| Control Mode: | Synchronism | Package Mode: | Black SMD 2121 |
| Control Card: | NOVA STAR/LINSN | ||
| High Light: | high refresh rate LED screens,SMD 2121 P2.5 Indoor LED Screens,FCC Approved Indoor LED Screens |
||

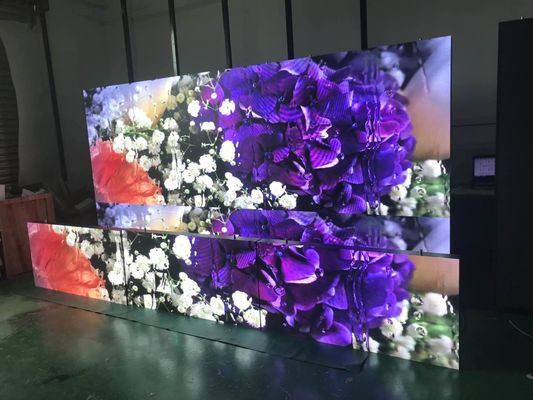

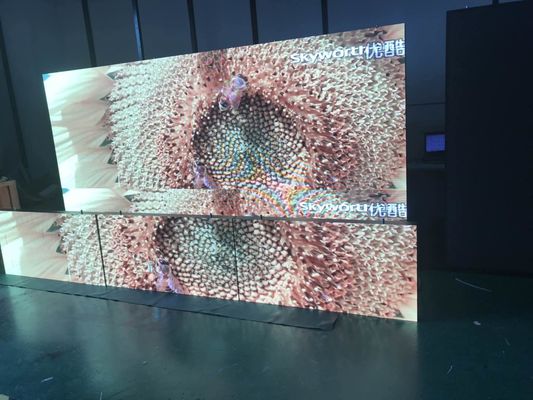

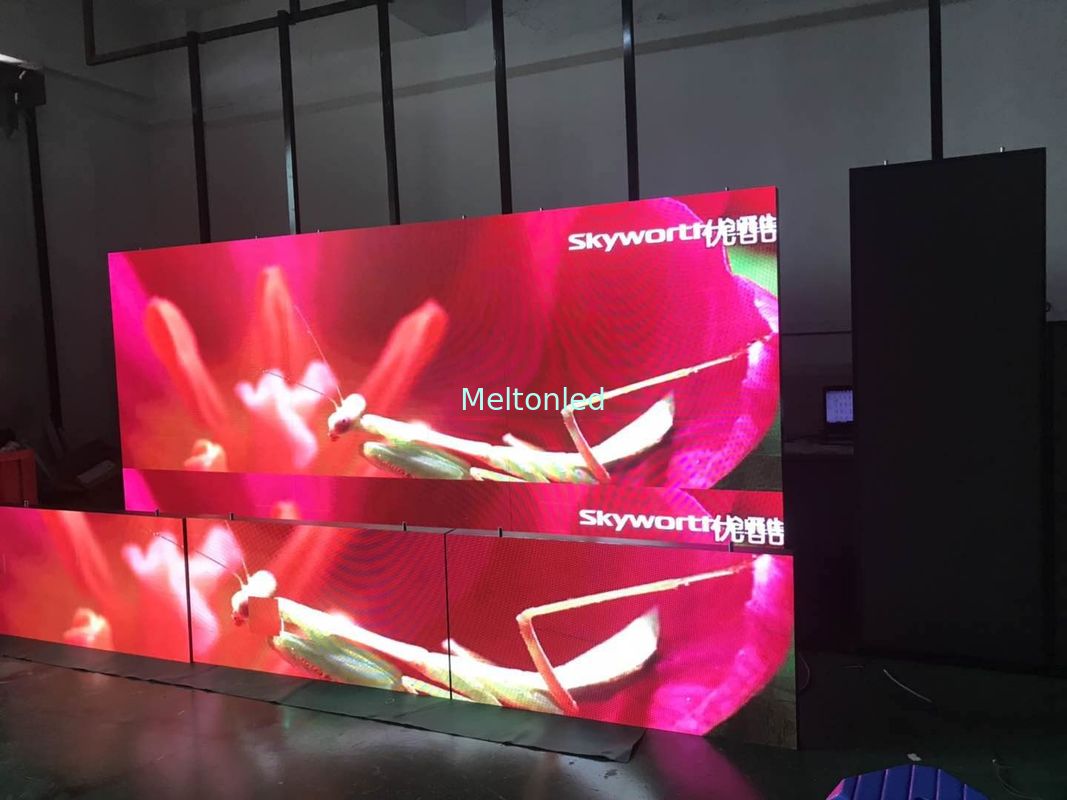

P2.5 indoor high refresh rate LED screen module wholesalers
Specification:
INDOOR P2.5 SMD 3IN1 TECHNICAL PARAMETERS
|

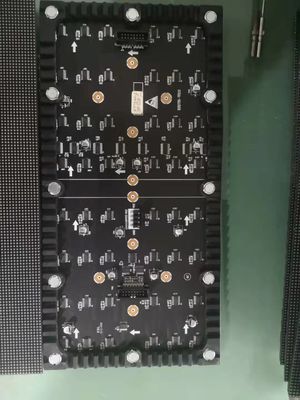

Unit Module |
Item | Parameter |
| Model Number | P2.5-32S | |
| Module size | 160mm*160mm | |
| Pixel pitch | 2.5mm | |
| Pixels Density | 160000/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD2121 | |
| Pixel resolution | 64dots(W)*64 dots(H) | |
| Max Power | 25W | |
| Module thickness | 15mm | |
| 27mm | ||
| Weight | 0.232kg | |
| Drive type | Constant drive | |
| Scan mode | 1/32scan | |
| Port type | HUB75E |
|
LED Cabinet |
Dimension | 640mm*640mm |
| Monomer Module Number | 8pcs | |
| Power supply | 5V/60A*1 pcs | |
| Thermal discharge | Fan0pcs | |
| Pixel per cabinet | 192*192 | |
| Best viewing distance | 3M20M | |
| Best viewing angle | 160(W) 120(H) | |
| Temperature |
storage:-35+85 working:-20+50 |
|
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
|
Power |
Working voltage | AC220V10% |
| Average Power consumption | <320W/ | |
| Max.Power consumption | <780W/ | |
| Current | <18mA(single LED) | |
|
Control system |
CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | >1920HZ | |
| / Grey scale/colors |
65536,16.7M 65536gray level/16.7M colors |
|
| MTBF | >9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |
P2.5-32S SMD 3IN1 SPECIFICATION.pdf
