High resolution digital led display board with super refresh rate , 100,000 hours lifespan

China High resolution digital led display board with super refresh rate , 100,000 hours lifespan supplier
High resolution digital led display board with super refresh rate , 100,000 hours lifespan supplier High resolution digital led display board with super refresh rate , 100,000 hours lifespan supplier High resolution digital led display board with super refresh rate , 100,000 hours lifespan supplier High resolution digital led display board with super refresh rate , 100,000 hours lifespan supplier High resolution digital led display board with super refresh rate , 100,000 hours lifespan supplier

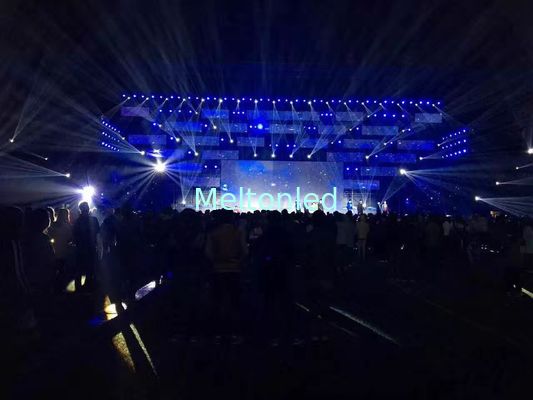

Large Image :  High resolution digital led display board with super refresh rate , 100,000 hours lifespan

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Meltonled
Certification: CE, RoHS, ISO,FCC,UL
Model Number: P3-1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc/1sqm
Price: 260usd/pc
Packaging Details: Anti-shaking wooden case/flight case/carton
Delivery Time: 8-25 days
Payment Terms: 35% T/T as prepayment,65% T/T as balance at factory, MoneyGram, Western Union
Supply Ability: >1000sqm/month
Delivery term: Ex-work/FOB/CIF/DDU
Contact Now
Detailed Product Description
Color: Full Color Application: Indoor
Weight: 10kg/pc Name: P1 P2 P3 P4 P5 P6 High Resolution Super Refresh Rate Led Stage Backdrop Rental Display
Brightness: >1500cd

p1 p2 p3 p4 p5 p6 high resolution super refresh rate led stage backdrop rental display



Technical Parameters



P3 Die Casting Aluminum Indoor Led Screen
Item Unit Parameter
Pixel Pitch mm 3
Resolution of Module dots 64×64
Module Size mm 192×192
Module Weight kg 0.4
Pixel Configuration SMD21211R1G1B
Chip Brand of LEDs Epistar
Pixel Density dots/sqm 11,1111
Brightness (White Balance) nits(cd/sq.m) 1200-1500cd
Red Wavelength nm 620-625
Green Wavelength nm 520-525
Blue Wavelength nm 470-475
Scan Mode 1/16 Scan
Viewing Distance M 3--35
Best View Distance M 5--15
Viewing Angle-Horizontal deg. 120
Viewing Angle-Vertical deg. 120
Module Maximum Power W 25
Max. Power Consumption W/sq.m 1,000
Avg. Power Consumption W/sq.m 300
Working Voltage 5V 40A
Power Supply AC 110/220V
Refresh Rate Hz/S 3,000
Frame Rate Hz/S ≥ 60
Gray Scale 4096 grades gray
Display Color 256*256*256
Display Function Text,news,advertising,flash,animation
Input Signal RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI,UXGA,COMPOSITION,etc.
Luminance Degradation

Less than 5% after 1000 hours Ageing test, testing

current 30mA, under normal temperature 25°C.

Defective Dot Rate <0.0001
Life Span hours 100,000
MTBF hours >5,000
Storage Temperature °C 45
Working Temperature °C -20 -- +60
Working Humidity 10-90%RH
Control System Synchronization or Asynchronization
Quality Certificate ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008










System
Top
High resolution digital led display board with super refresh rate , 100,000 hours lifespan



FAQ



Q1,How to arrange payment?

Our payment terms in usually is T/T payment,for sample and small order,Western union,Paypal or Moneygram also be acceptable



Q2,What is our warranty?

Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well



Q3,How to be our distributor?

To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time



Q4, How to maintence led screen?

In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules



Q5,How to select led type?

In usually,

For indoor stage will be select indoor die casting P2.5 P3 P4 P5 P6,P3.91 P4.81 P6.25

For outdoor stage will be select P4.81 P6.25 P6 P8 P10

For fixed installed led screen, can select P3 P4 P5 P6 P7.62 P10

For outdoor fixed installation,if it is not directly to sun,can select outdoor SMDP6 P8 P10,DIP P10 P12

if directly to sun,can select outdoor SMD P8, DIP P10

For big size led screen can select DIP P10 P12 P16 or P2

Also we have researched outdoor high resolution DIP 3in1: P4 P5 P6 P8 P10,there are good for high resolution led screen
