Product Details:
Payment & Shipping Terms:
|
| Usage: | Indoor,Outdoor,Advertising,Trade Show | Pixels: | 6.67mm |
|---|---|---|---|
| Tube Chip Color: | Full Color | Warranty: | 2 Years |
| Life Span: | 100000hours | Module Size: | 320*320mm |
| Color: | Full-color | Application: | Adervertising |
| High Light: | video display boards,curved led screen |
||

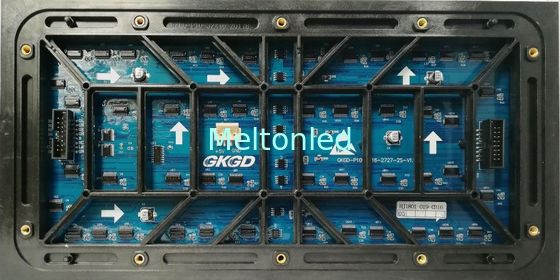

| Unit Module | Item | Parameter |
| Model Number | HX-P6.67-6S | |
| Module size | 320mm*160mm | |
| Pixel pitch | 6.67mm | |
| Pixels Density | 22500dot/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD3535 | |
| Pixel resolution | 48dots(W)*24 dots(H) | |
| Max Power | 40W | |
| Module thickness | 17.05mm | |
| Weight | 0.546kg | |
| Drive type | Constant drive | |
| Scan mode | 1/6scan | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥6500cd/m2 |
|

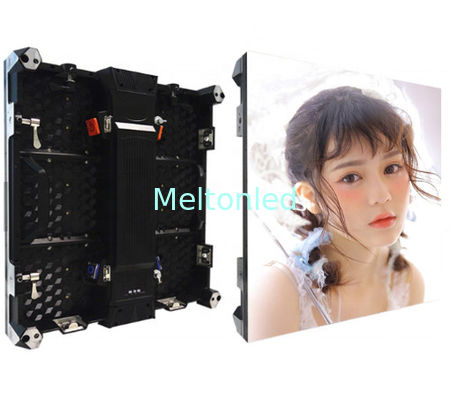

LED cabinet Cabinet |
Dimension | 640mm*640mm |
| Monomer Module Number | 8 | |
| Power supply | 5V/40A*1 pcs | |
| Thermal discharge | fan 2pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 6M~40M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃~+85℃ working:-20℃~+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 320W/m2 | |
| Max Power consumption |
≤780W/m2
|
|
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors |
4096gray level/16.7M colors |
|
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Super thin, it is only 99mm depth including LED modules.
All Die casting, die casting modules make less tolerance,
die casting shell make better cooling,
die casting lock make longer durability.
Production Display
Packaging Detail:100cm*112cm*71cm G.W.:165KG
Or as customer's request.
Shipping Detail: UPS/Fedex/TNT/DHL, By air, By sea
