|Product Name:||Led Billboard Display||Usage:||Outdoor|
|Tube Chip Color:||Full Color||Pixel Pitch:||10mm|
|Pixel Composition:||1R1G1B||Brightness:||More Than 7500CD/m2|

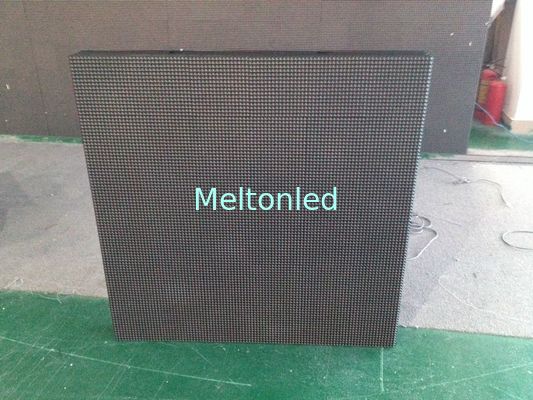

Outdoor High Resolution Led Billboard Display Full Color 1R1G1B 960 * 960
electronic billboard screen
4.Lead time fast
P10 electronic billboard screen(Outdoor LED Billboard Display)
Features & Technical Specification:
Applications: Outdoor all-weather environment and rental use. High brightness, high protection rating and high stability, suitable for close viewing and small size application.
General Module which will make the display very flat and minimum gap between modules endow your LED display with an high-end products.
1. Special design which can make our LED panel both front and rear side maintainance accessible. This will greatly cut down the maintain cost.
2. Ultra high brightness (8000 Nit) with low power consumption (300W/M2).
3. High refresh rate (greater than 3380 Hz) with software adjustable, suitable for filming.
4. High grayscale (14 bits) with perfect visual performance.
5. High Contras ratio (2000:1) with black mask and black coating technique.
6. Wide viewing angle (greater than 140 ° in horizontal).
7. IP65 protection rating.
8. Fast and easy to assemble and dismantle.
9. High reliability and long lifespan (MTBF ≥ 5000 hours).
Optional for upgrade:
1. Ultra-High refresh rate (greater than 3000 Hz) with software adjustable, suitable for filming.
2. High grayscale (16 bits) with realistic visual performance.
3. On-site pixel by pixel brightness and color correction bring greater uniformity.
LED billboard display screen the details as below:
|LED Dots per square meter||10000|
|Cabinet size||960*960 mm or customer's required|
|Brightness||More than 7500CD/m2|
|Weight per Cabinet||52kg|
|View Angle||Horizontal 120 / Vertical 75|
|Refresh Frequency||More than 300Hz/S|
|Power Consumption (W/m2)||Max 1000|
|Control system||Synchronized with PC Controlled|
|Life time||More than 100, 000 hours|
Methods for Quality Assurance
1. 100% fully test
2. Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.
Flight case and Fumigation-Free wooden case
Control System Connection
1. 2 years’ warranty with free repair service
2. 24/7 Hours online Remote Support
3. Solution and PCB design
4. Free factory training
5. Onsite installation instruction and regular inspection
6, Small order accepted.
