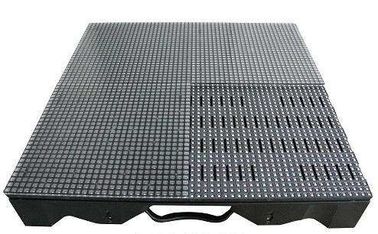

P10 SMD Led Panel Outdoor Cabinet For Advertising

P10 SMD Led Panel Outdoor Cabinet For Advertising
P10 SMD Led Panel Outdoor Cabinet For Advertising

Large Image :  P10 SMD Led Panel Outdoor Cabinet For Advertising

Product Details:
Place of Origin: China
Brand Name: MLED
Certification: CE-ROHS
Model Number: P4.81
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD 350-550 piece
Packaging Details: air flight case/cartoon case/poly wooden case
Delivery Time: 12-15working day
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 100000PCS/ month
Detailed Product Description
Product Name: Good Price And Good Quality P4.81 Led Panel Outdoor Cabinet For Advertising Refresh Rate: >1200HZ
Pixel Configuration: 1R1G1B Max Power: 16W
Scan Mode: 1/13scan Brightness Of White Balance: 1500cd/m2
Dimension: 500mm*500mm Best Viewing Angle: 160°(W) 120°(H)
High Light:

Advertising P10 SMD Led Panel

,

Outdoor Cabinet P10 SMD Led Panel

Good price and good quality P4.81 led panel Outdoor Cabinet For Advertising


Product description



1.Durable fresh color and High brightness

2.Patented design of anti-glare mask with high temperature resistant coating on the surface to absorb direct light, reduce glare, and improve the contrast ratio of display.

3.Anti-UV, anti-oxidation module prevents from deformation.

4.On-site brightness and chroma calibration can recover the uniformity.

5.High energy efficiency,Stability and reliability

6.Precise manufacturing process keeps the modules rugged and durable.

7.IP65 protection grade, waterproof rubber gasket and military-grade conformal coating enable the display to work in all weather outdoor environments.

8.Aircraft-grade connectors of power supply and signal connection are of high reliability, good conductivity and durability, suitable for rapid connection and high frequency use.




P10 Outdoor DIP TECHNICAL PARAMETERS



Unit Module Item Parameter
Model Number P10-4S
Module size 160mm*160mm
Pixel pitch 10mm
Pixels Density 10000dots/m2
Pixel configuration 1R1G1B
Package mode DIP346
Pixel resolution 16dots(W)*16dots(H)
Max Power 16W
Module thickness 16-18mm
Weight 0.45kg
Drive type Constant drive
Scan mode 1/4scan
Port type hub75
Brightness of white balance ≥7500cd/m2

LED

Cabinet

Dimension 640mm*640mm
Monomer Module Number 16
Power supply 5V/60A*1 pcs
Thermal discharge anto
Pixel per cabinet 64*64dots
Best viewing distance 6M~40M
Best viewing angle 160°(W) 120°(H)
Temperature

storage:-35℃~+85℃
working:-20℃~+50℃

Relative humidity 10%-95%
Thickness 80mm
Power Working voltage AC220V±10%
Average Power consumption 270W/㎡
Max.Power consumption

≤680W/m2


Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

Driving device Constant drive IC
Refresh frequency ≥1200HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥9000hours
Fire rate Grade one
Display Mode ≥800*600/1024*768


 P10 SMD Led Panel Outdoor Cabinet For Advertising 0


Main area



1.Shopping mall,supermarket,banks,elevators,subways



2.Commercial centers



3.Interior decoration



4.Office buildings



5.Restaruants



6.Indoor and outdoor decorations

Packaging



Flight case: The LED air box is equipped with a clapboard and shock-proof cushioning material. It is shock-proof and shock-proof.;Casters can be installed in the LED air box, which is highly mobile and flexible.;Can be customized according to customer requirements;if your led display screen system is for the rental use, please choose the flight case for your led display screen.



Wooden case: Wooden case is only for one time using transportation.For the fixed installation ledpanel system, wooden case packing is the only way and the best way for packing



Carton box: It is the inexpensive packing method for the led display,which is mainly for the small screen and short shipping distance.





P10 SMD Led Panel Outdoor Cabinet For Advertising 1


 Our factory



P10 SMD Led Panel Outdoor Cabinet For Advertising 2



Our service




1. Well-trained and experienced staffs answer all your questions.



2.Reply your inquiry within 24 working hours.



3. Special discount are offered based on order quantity.


4. Can offer technical support to customers by videos or photos.

5. Exclusive and unique solution can be provided to customers by our well-trained and professional engineers.
