Product Details:
Payment & Shipping Terms:
|
| Product Name: | Road Street Outdoor P6 Billboard Led Wireless Advertising Pole Lamp | Module Size: | 192*192mm |
|---|---|---|---|
| Pixel Pitch: | 6mm | Pixel Density: | 27777dots/m2 |
| Packaging Mode: | SMD3535/2727 | Pixel Resolution: | 32dots(W) 32dots(H) |
| Drive Type: | Constant Drive | Brightness Of White Balance: | >6000cd/m2 |
| High Light: | ledoutdoor billboards,digital led billboards,Road Street Outdoor P6 billboard |
||
Product description
4.Application
Community, walking street, school, hospital, road side, park, super market, parking lot, metro station, hotel, gas station,etc.
P6 OUTDOOR SMD 3IN1 TECHNICAL PARAMETERS
|
Unit Module |
Item | Parameter |
| Model Number | P6-8S | |
| Module size | 192mm*192mm | |
| Pixel pitch | 6mm | |
| Pixels Density | 27777dots /m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD3535/2727 | |
| Pixel resolution | 32dots(W)*32dots(H) | |
| Max Power | 35W | |
| Module thickness | 17.05mm | |
| Weight | 0.369kg | |
| Drive type | Constant drive | |
| Scan mode | 1/8scan | |
| Port type | HUB75 | |
| Brightness of white balance | >6000cd/m2 |
|
LED Cabinet |
Dimension | 576mm*576mm |
| Monomer Module Number | 9pcs | |
| Power supply | 5V/60A*1 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 96mm*96mm | |
| Best viewing distance | 6M 40M | |
| Best viewing angle | 160 (W) 120 (H) | |
| Temperature |
storage:-35 +85 working:-20 +50 |
|
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
|
Power |
Working voltage | AC110V 220V 10% |
| Average Power consumption | <380W/sqm | |
| Max.Power consumption | <950W/sqm | |
| Current | <20mA(single LED) | |
|
Control system |
CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | >1200HZ | |
| Grey scale/colors |
16384 , 16.7M 16384gray level/16.7M colors |
|
| MTBF | >9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |
Detail image

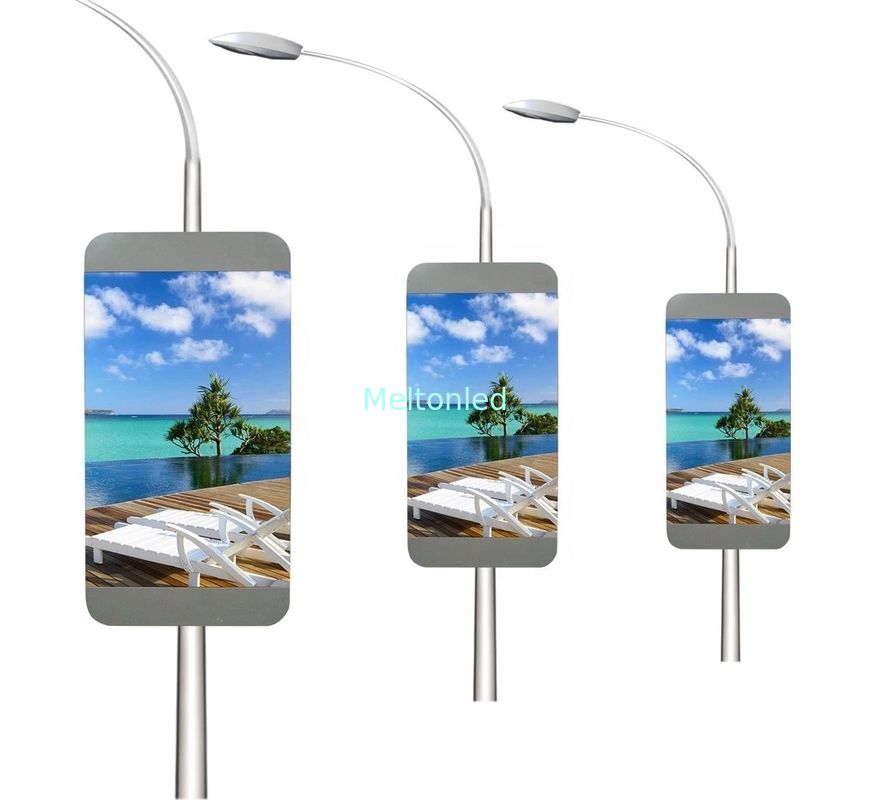

High resolution LED Display, one cabinet can work as a screen and play HD pictures or Videos.
Can be easily installed on the lighting pole.

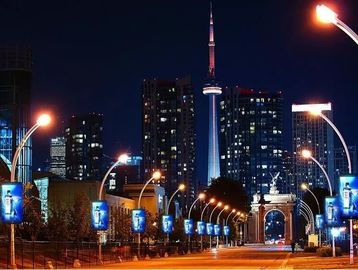

It looks shocked when many same lighting pole screen installed at the same street. The pictures or video can be working at the same time. It makes the advertisement more memorable.
Company information
1.Our company owns a group of high-quality professional and technical personnel and advanced modern sophisticated production equipment.We implement strict quality management, making every LED module,LED display cabinet,Power supply ,Video processor ,LED display into competitive products, etc.
2.Through our team's professional technology, innovative thinking, enterprising spirit, cooperative relationship, win-win attitude, to make the display screen more beautiful, more intelligent, and strive to become a global leader in the field of LED display control.
