| Product Name: | China Factory Taiwan Chip Rental P4 Light Super Slim /ultra Thin Die-casting Stagebackdrop Led Screen For Concert | Usage: | Advertising RENTAL |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixel Pitch: | 4mm |
| Avarage Power Consumption: | 600W/m2 | Brightness Control: | 256grade |
| Highlight: | rental led display,led video rental |
||

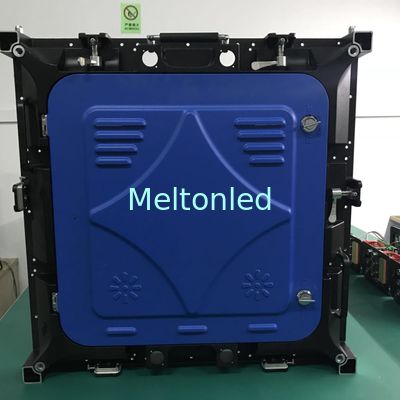

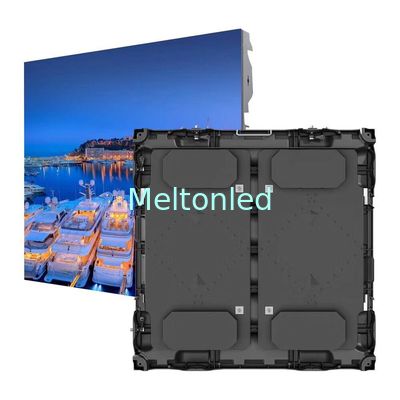

China factory Taiwan chip rental P4 Light Super slim /ultra thin Die-casting stagebackdrop led screen for concert
LED parameters
| Item | Luminous Intensity | View Angle(H/V) | Wavelength | Test Condition |
| Red LED | 400-4200mcd | 160°/120° | 620-625nm | 25℃,20mA |
| Green LED | 1200-1280mcd | 160°/120° | 520-525nm | 25℃,20mA |
| Blue LED | 190-220mcd | 160°/120° | 465-470nm | 25℃,20mA |
Module Parameters
| Item | Parameter |
| Model number | P4-16s |
| Module size | 256x256mm |
| Pixel pitch | 4mm |
| Pixel density | 62500dots/m2 |
| Pixel configuration | 1R1G1B |
| Package mode | SMD2121 |
| Pixel resolution | 64dots(W)*64dots(H) |
| Max Power | 40W |
| Module thickness | 12-14mm |
| Weight | 0.38kg |
| Drive type | constant drive |
| scan mode | 1/16scan |
| Port type | hub75 |
| Brightness of white balance | ≥1200cd/m2 |
Cabinet Parameters
| Dimension | 512mm*512mm |
| Monomer Module Number | 8 |
| Power supply | 5V/40A*1pc |
| Thermal discharge | anto |
| Pixel per cabinet | 128mm*128dots |
| Best viewing distance | 6M~40M |
| Best viewing angle | 160°(W)120°(H) |
| Temperature |
storage:-35°C~+85°C working:-20°C~+50°C |
| Relative humidity | 10%~95% |
| Thickness | 80mm |
Screen Parameters
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 280W/m2 | |
| Max Power consumption | 700W/m2 | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation systerm | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096 gray level/16.7M colors | |
| MTBF | ≥10000hours | |
| Fire rate | grade one | |
| Display Mode | ≥800*600/1024*768 |
Description:
•With sensitive control system, it can adjust screen brightness automatically according to the lighting change of indoor and outdoor, saving energy to reduce your operating costs greatly.
•High refresh rate and high gray make the picture more realistic, which meets the demand of high visual quality of commercial usage.
•The advertising contents can be changed at any time, for different customers and various advertisements.
•you can know the display operation anytime, anywhere.
• it can turn on and turn off the screen by software timing or manually at any time, achieving unattended function.
Applications:
This kind of LED 2R1G1B full color led display is appliled for displaying advertising, city beautifying, information publicity, great concerns and relative activities.
1 Quiet,light, steady efficent bright
2 Lower power consumption
3 Low cost and easy operation
4 Good quality and after-sale-service
5 timely delivery
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service.
