Product Details:
Payment & Shipping Terms:
|

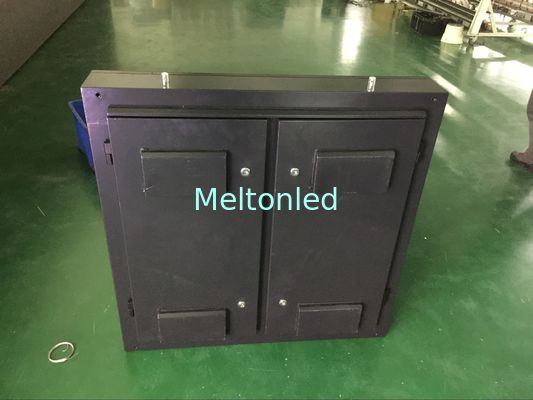

Product Name: | New Technology Ultra Thin&slim P10 Outdoor Full Color Led Display Cabinets 960x960mm | Feature: | Waterproof IP65 |
---|---|---|---|
Tube Chip Color: | Full Color | Pixel Pitch: | 10m |
Pixel L ED: | Smd3535 | Chip: | Nationstar |
IC: | MBI5124 | Brightness: | >7500nits/sqm |
Highlight: | video display boards,high resolution led display |
Specifications:
model number | Mled-PH10-F39 |
1.Pixel | |
Pixel L ED | SMD3535 |
Pixel Configuration | 1R, 1G , 1B |
Wave length ( nm ) | R: 800-1000 , G:2040-2450, B: 360-430 |
Pixels Pitch ( mm ) | 10 |
2 . Module | |
Module Size ( mm ) | 320 * 160 * 20 |
Module Pixels (dot) | 32 *16 |
3.Unit box | |
Module quantities in a unit box | 6 (L) * 3 ( H ) |
Unit box size ( mm ) | |
960 (L) * 960 (H) * 120 | |
Unit box Pixels ( dot ) | 96 * 96 |
Unit box material | Aluminum or Iron |
Unit box weight (kg) | Aluminum : 25 or Iron : 35 |
4.Packaging | |
Packing Way | Two unit boxes packed into one |
Packing box material | Wooden case or Flight box |
Packing box size (mm) | 1020 * 540 * 1020 |
5.electricity parameter | |
Pixel density (dots/ m 2 ) | 10000 |
White Balance Brightness ( cd/m 2 ) | ≥ 7500 |
Color temperature ( K ) | 5000-9500 (choice by user) |
Brightness Adjusted | 100 grade by software or by Auto-optic induced. |
View Angel | Horizontal 120 ° ; Vertical 120 ° |
Best viewing distance ( m ) | 16-150 |
Communication distance ( m ) | Internet Wire : 120 Fiber Cable : 1000 |
Screen work Method | 1/2 |
LED driving method | Constant driving current |
Gray Grades | 16384 levels for each color |
Display Color | 4 , 398 , 046 , 511 , 104 |
Refresh Frequency ( Hz ) | ≥ 840 |
Picture display method | Dots to dots display synchronized with CRT |
Signal interface | DVI |
Input signal | Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV |
Display format | 800 * 600 , 1024 * 768 , 1280 * 1024 |
Software | Support windows series system |
Protection grades | IP 65 |
Working temperature (ºC ) | -40 +60 |
Humidity ( RH ) | Up to 95 |
Stored temperature ( ºC) | -30 +70 |
Screen Lifetime(hours) | ≥100, 000 |
Out of controlled dots | ≤3/10, 000 (Out of controlled dots means the pixels of which the brightness, |
and the wave length are both >10% depart to the normal one) | |
Whole display flatnes | Less than 1mm Juncture |
Maintance way | Back-maintained or front-maintained, |
modules displaced | |
Switch power supply |
Switch power supply (include CE/GS or UL/CSA certificate) 110V/60HZ , 220V/50HZ |
Power Consumption ( w /m 2 ) | Max : 1000 , Average: 500 |
Applications:
outdoor full color digital billboard are very popular in LED display advertising field. This type digital billboards are widely used Outdoor plaza,Outdoor building,stadium,shopping mall,cross road,highway, airport etc;
