Product Details:
Payment & Shipping Terms:
|

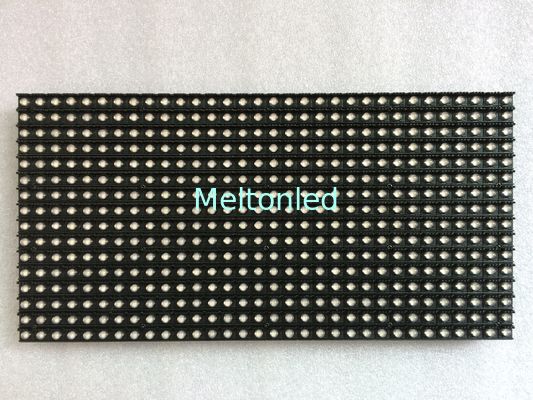

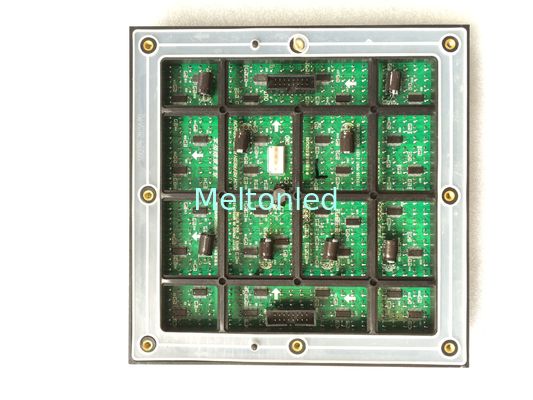

Name: | Waterproof RGB Outdoor Full Color P10 P8 P6 P5 P4 Led Digital Screen Display Modules | Led Lamp: | DIP2823 |
---|---|---|---|
Led Chip: | Epistar | Drive IC: | NF5034/PR5034 |
Brightness: | >7500cd/sqm | ||
High Light: | digital led display board,smd led module |
Cheapest led screen module outdoor led screen module outdoor led display module
Specifications
Parameter | P4 3IN1 | P5 3IN1 | P6 3IN1 | P8 3IN1 | P10 3IN1 | |
Module | Pixel Configuration | DIP 2823 | DIP 2823 | DIP 4543 | DIP 4353 | DIP 4543 |
Pixel(mm) | 4 | 5 | 6 | 8 | 10 | |
module resolution(W×H) | 64*32 | 64*32 | 32x32 | 32x16 | 32*16 | |
module size(mm) | 256(W)×128(H) | 320(W)×160(H) | 192(W)×192(H) | 256(W)×128(H) | 320(W)×160(H) | |
Module weight(kg) | 0.43 | 0.5 | 0.45 | 0.43 | 0.5 | |
Driver IC | NF5034/PR5034 | NF5034/PR5034 | NF5034/PR5034 | NF5034/PR5034 | NF5034/PR5034 | |
Driving way | 1/12 | 1/12 | 1/6 | 1/6 | 1/3 | |
Module Maximal power(W) | 23 | 23 | 23 | 23 | 23 | |
Cabinet | Module(W×H) | 4x6 | 3X6 | 5×4 | 4×8 | 3×6 |
Cabinet resolution(W×H) | 256x192 | 128x128 | 160×128 | 128×128 | 96×96 | |
Cabinet size(mm) | 1024 (W)*768 (H)*120 (D) | 960(W)×960(H)×120(D) | 960(W)×768(H)×120(D) | 1024(W)×1024(H)×120(D) | 960(W)×960(H)×120(D) | |
Cabinet material | iron | iron | iron | iron | iron | |
Weight(kg/Pcs;kg/m2) | 18 ;52 | 20 ;55 | 19 ;55 | 18 ;52 | 20 ;65 | |
Density(dots/m2) | 62500 | 40000 | 27721 | 15625 | 10000 | |
Protection grade | IP65 | IP65 | IP65 | IP65 | IP65 | |
Cabinet flatness(mm) | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
optical parameter | brightness correction for single point | Yes | Yes | Yes | Yes | Yes |
Color correction for single point | Yes | Yes | Yes | Yes | Yes | |
brightness before correction(nit) | ≥7500 | ≥7500 | ≥7500 | ≥8000 | ≥7500 | |
White balance brightness(nit) | ≥7500(Color temp5500K,after correction) | ≥7500(Color temp5500K,after correction) | ≥7500(Color temp5500K,after correction) | ≥8000(Color temp5500K,after correction) | ≥7500(Color temp5500K,after correction) | |
Color Temp(K) | 3200—9300adjustable | 3200—9300adjustable | 3200—9300adjustable | 3200—9300adjustable | 3200—9300adjustable | |
horizontal view angle( °) | 100 | 100 | 100 | 100 | 100 | |
Vertical view angle( °) | 70 | 70 | 70 | 70 | 70 | |
Brightness uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | |
Color uniformity | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy | ±0.003Cx,Cy | |
Power Supplier | 4.2V/40A-4.2/60A | 4.2V/40A-4.2/60A | 4.2V/40A-4.2/60A | 4.2V/40A-4.2/60A | 4.2V/40A-4.2/60A | |
electrical parameter | Power consumption(W/cabinet;W/m2) | 600;980 | 900 ;980 | 500 ;980 | 800 ;980 | 900 ;980 |
Power requirement | AC85~264V(50-60Hz) | AC85~264V(50-60Hz) | AC85~264V(50-60Hz) | AC85~264V(50-60Hz) | AC85~264V(50-60Hz) | |
Power-supply effiency/Power factor | 85%/0.95 | 85%/0.95 | 85%/0.95 | 85%/0.95 | 85%/0.95 | |
Performance | Driving way | Constant Current | Constant Current | Constant Current | Constant Current | Constant Current |
Frame frequency(HZ) | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | |
Refresh frequency(Hz) | ≥2600 | ≥2600 | ≥2600 | ≥2600 | ≥2600 | |
operation parameter | lifetime(h) | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours | ≥100,000 Hours |
