| Product Name: | Advertising Smd P10 1/2s Outdoor Full Color Led Display Billboard On The Wall | Usage: | Advertising |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixel Pitch: | 10mm |
| Gray Scale: | 65536grade | Pixel Configeration: | 1R,1G,1B |
| Waterproof: | IP65 | ||
| High Light: | digital led display board,video display boards |
||

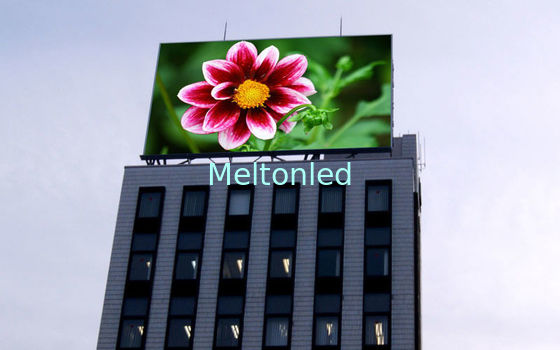

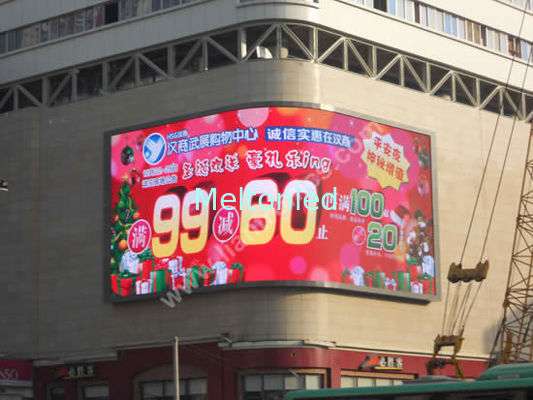

Advertising Smd P10 1/2s Outdoor Full Color led display billboard on the wall
Melton--Outdoor led display spec.pdf
| SMD-P10 | Advertising Smd P10 1/2s Outdoor Full Color led display billboard on the wall | |
| Description | Technical parameter | |
| Unit module | Module size | 160*320mm |
| Pixel pitch | 10mm | |
| Pixel density | 10,000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Led specification | Φ3ellipse | |
| Pixel resolution | W:16dots*H:32dots | |
| Cabinet | Dimension | 960mm*960mm*120mm |
| Quantities of module | 18pcs | |
| Power supply | 6pcs | |
| Thermal discharge | Fan*2pcs | |
| Total weight | 38kg | |
| Best viewing angle | 10-100m | |
| Temperature | Storage: -35°C~+85°C | |
| Working: -20°C~+60°C | ||
| Thickness | 15cm can adjustable | |
| Remarks: cabinet size can changed, upon project need. | ||
| Power | Working voltage | AC220V/110V±10% |
| Average power consumption | 300-400W | |
| Max. Power consumption | ≤1000W/sqm | |
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | 1/2scanning |
| Drive type | Constant Current driver IC | |
| Refresh frequency | ≥1200Hz | |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
| Brightness of white balance | More than 8000cd/sqm | |
| Brightness adjustment | 256 levels of each color(R/G/B)by software | |
| Operating ambient humidity | 10%--95% | |
| Video signal | PAL/NTSC | |
| Control system | DVI display card+full color controller card | |
| MTBF | ≥10,000hours | |
| Life span | ≥100,000hours | |
| Flatness | Tolerance of interpixel ≤0.3mm | |
| Tolerance of modules clearance≤0.6mm | ||
| Power switch | Automatic switch | |
| Display mode | 1024*768 | |
Products function introduction
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, have the excellent consistency of light.
3) To pictures and character, have clear, exquisite and real display effect.
4) Big viewing angle to 120-150 degree at horizontal line, 120-150 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
Products Advantages
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, big viewing angle, easy repair
3) Quality advantage: each performance index of our products has achieved the domestic advanced level. The craft obeys standards of the nation and the profession, and all components use the finest product in the nation.
4) Service advantage: Better service at same situation, better cooperation at same service!
Products list and application area
1) Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, so make the whole display.
2) Extensively used in physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment.
3) Diversified spec, such as PH6, PH7.62, PH8, PH10, PH12, PH14, PH16, PH20 etc.
At present, we mainly have these types in the following
According to the using atmosphere, we have three types: outdoor LED Display with high capability of waterproof, half-outdoor LED Display and indoor LED Display.
According to the color, we have single color type, double color type and full-color type
According to the system, we have offline system, which display your information by using a control card, online system; online system synchronizes with the computer. And they can display words, pictures, video respectively or together.
You can choose the proper type in accordance with your needs, and we can satisfy your demands as possible as we can.
