Product Name: | Outdoor Taxi Led Display With Great Effect Multi-color Led Transparent Tv/Optoelectronic Displaysoutdoor Taxi Led Display With Great Effect Multi-color Led Transparent Tv/Optoelectronic Displays | Application: | Car |
---|---|---|---|
Color: | Full Color | Pixel: | 5mm |
Scan: | 1/8 | ||
High Light: | taxi top led display,LED Taxi Sign |

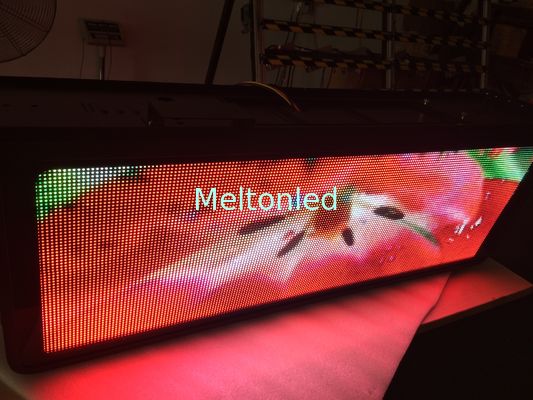

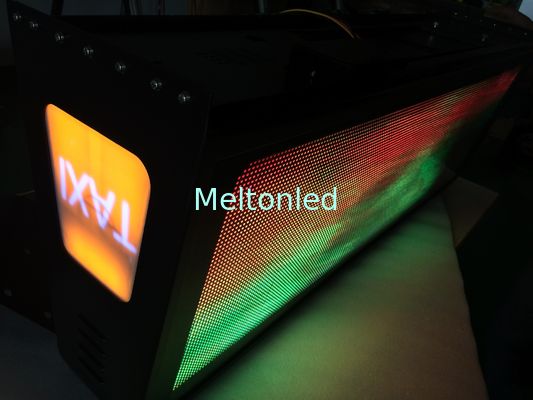

Great effect Taxi LED Display / multi - color taxi digital advertising electronic
Full color by filling the whole of imported silica gel, which makes our products in water, antifreeze, superior high-temperature side
After a dustproof and waterproof tested to reach its target IP54
All modules are cross color enhancing, and the edge compression is strong, not deformation, the flatness of display cabinet will be better.
The box with a sliding iron top, bottom chute, and optional locking device to fine-tune the gap and ensure seamless between the boxes. Please do not squeeze the entire screen which ensure good surface smoothness
Measured by the Shenzhen Institute of Quality Inspection Bureau U.S. core companies of the outdoor full color display for temperature impact test, the results showed that: outdoor full color display can use the power normally under the temperature at -25 °C to +75 °C
Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places
Display Specification | ||||||||||
1 | Pixel pitch | 5 mm | ||||||||
2 | Resolution | 40,000 dots/sq.m | ||||||||
3 | Display size (each side) | W 0.96 × H 0.32 = 0.3072 sq.m | ||||||||
4 | Screen resolution (each side) | W 192 × H 64 = 12,288 | ||||||||
5 | Total module quantity (each side) | W 6 × H 2 = 12 pcs | ||||||||
6 | Total cabinet quantity | 1 pc | ||||||||
7 | Cabinet size (including frame) | W 1060 × H 400 × D 135 mm | ||||||||
8 | Power consumption (Max.) | 650 W | ||||||||
9 | Power consumption (Ave.) | 435 W | ||||||||
10 | Maximum Current | 54.5 Amp | ||||||||
LED Module Specification | ||||||||||
11 | LED composition | 1R 1G 1B | ||||||||
12 | LED type | SMD3528 | ||||||||
13 | Module resolution | W 32 × H 32 | ||||||||
14 | Module size | W 160 × H 160 mm | ||||||||
15 | Driving method | 1/8 scan constant current | ||||||||
Cabinet Specification | ||||||||||
16 | Cabinet material | Aluminum cabinet with frame | ||||||||
17 | Cabinet color | Silver | ||||||||
18 | Cabinet weight | about 23 kg | ||||||||
19 | Flatness | Less than 1mm juncture | ||||||||
Optical Parameters | ||||||||||
20 | Brightness | 3,000 nits/sqm | ||||||||
21 | Viewing angle | Horizontal 140°, vertical 140° | ||||||||
22 | Minimum viewing distance | 5 m | ||||||||
Power Supply | ||||||||||
23 | Power supply | DC 9 ~ 36V | ||||||||
24 | Output voltage | DC 5V | ||||||||
Control System | ||||||||||
25 | Control card | Sheenled | ||||||||
26 | Memory | 4G | ||||||||
27 | Control method | 3G | ||||||||
28 | Refresh rate | 480 HZ | ||||||||
29 | Refresh frame frequency | 60~85 HZ | ||||||||
Formats Supported | ||||||||||
30 | Video | AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV | ||||||||
31 | Animation | GIF, SWF | ||||||||
32 | Picture | JPG, BMP, WMF | ||||||||
Reliablity | ||||||||||
33 | Protection grades | IP65 | ||||||||
34 | Work temperature | -20~+60ºC | ||||||||
35 | Humidity(RH) | 10~90% | ||||||||
36 | LED Life span | More than 100,000 hours | ||||||||
37 | MTBF | 5000 hours | ||||||||
38 | Out of controll dot rate | Less than 1/10,000 |
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service;
4, Promote delivery;
5, Energy-saving;
6, Small order accepted.
