Product Details:
Payment & Shipping Terms:
|
| Product Name: | 2017 New Products P6 Taxi Top Led/taxi Top Led Screen/advertising Display For Car With Duel Side | Application: | Car |
|---|---|---|---|
| Display Primary Color: | Rgb | Pixel Pitch: | 5mm |
| Driving Method: | 1/8 Scanning | Power Consumption: | 400w/m2 |
| Input: | 12v | Material: | Al |
| Highlight: | led taxi display,taxi top led display |
||

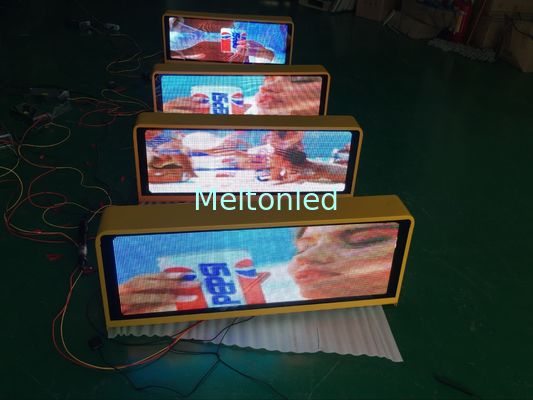

DC12-24V P6 Taxi top car top sign / taxi roof signs with duel side
| Display Specification | ||||||||||
| 1 | Pixel pitch | 5 mm | ||||||||
| 2 | Resolution | 40,000 dots/sq.m | ||||||||
| 3 | Display size (each side) | W 0.96 × H 0.32 = 0.3072 sq.m | ||||||||
| 4 | Screen resolution (each side) | W 192 × H 64 = 12,288 | ||||||||
| 5 | Total module quantity (each side) | W 6 × H 2 = 12 pcs | ||||||||
| 6 | Total cabinet quantity | 1 pc | ||||||||
| 7 | Cabinet size (including frame) | W 1012 × H 408 × D 160 mm | ||||||||
| 8 | Power consumption (Max.) | 650 W | ||||||||
| 9 | Power consumption (Ave.) | 435 W | ||||||||
| 10 | Maximum Current | 54.5 Amp | ||||||||
| LED Module Specification | ||||||||||
| 11 | LED composition | 1R 1G 1B | ||||||||
| 12 | LED type | SMD3528 | ||||||||
| 13 | Module resolution | W 32 × H 32 | ||||||||
| 14 | Module size | W 160 × H 160 mm | ||||||||
| 15 | Driving method | 1/8 scan constant current | ||||||||
| Cabinet Specification | ||||||||||
| 16 | Cabinet material | Aluminum cabinet with frame | ||||||||
| 17 | Cabinet color | Silver | ||||||||
| 18 | Cabinet weight | about 23 kg | ||||||||
| 19 | Flatness | Less than 1mm juncture | ||||||||
| Optical Parameters | ||||||||||
| 20 | Brightness | 3,000 nits/sqm | ||||||||
| 21 | Viewing angle | Horizontal 140°, vertical 70° | ||||||||
| 22 | Minimum viewing distance | 5 m | ||||||||
| Power Supply | ||||||||||
| 23 | Power supply | DC 9 ~ 36V | ||||||||
| 24 | Output voltage | DC 5V | ||||||||
| Control System | ||||||||||
| 25 | Control card | Sheenled | ||||||||
| 26 | Memory | 4G | ||||||||
| 27 | Control method | 3G | ||||||||
| 28 | Refresh rate | 480 HZ | ||||||||
| 29 | Refresh frame frequency | 60~85 HZ | ||||||||
| Formats Supported | ||||||||||
| 30 | Video | AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV | ||||||||
| 31 | Animation | GIF, SWF | ||||||||
| 32 | Picture | JPG, BMP, WMF | ||||||||
| Reliablity | ||||||||||
| 33 | Protection grades | IP65 | ||||||||
| 34 | Work temperature | -20~+60ºC | ||||||||
| 35 | Humidity(RH) | 10~90% | ||||||||
| 36 | LED Life span | More than 100,000 hours | ||||||||
| 37 | MTBF | 5000 hours | ||||||||
| 38 | Out of controll dot rate | Less than 1/10,000 | ||||||||
1. High brightness
2. Outdoor waterproof IP65
3. CE ROHS ETL SGS SAA Fcc UL
4. Low power consumption
5. DC12-24V
Description:
We are advertising LED display screen manufacturer and global wholesaler of large outdoor and indoor
full color electronic LED matrix display screens, LED signs and LED screens used for mayor advertising
campaigns; placed next to highways, or LED message and video displays for football stadiums, electronic
arrival and departure airport displays signs, LED screen displays for schools or shops and malls to
highlight products and services.
· Our LED display signs have the ISO9001:2008 Quality System Certification;
· CE Certification of our led display signs;
· Rohs Certificates;
· Excellent, Technical Innovation;
· Price performance ratio;
· Contract Performance and Credibility;
· LED Displays with high brightness LED´s;
· Modular LED display screens;
· Our LED Display Screens have two years warranty ;
· Post sale assistance (after sale);
· High expertise and know-how about LED display products;
Personalized sale and less than 24 hours response on all inquiries.
Applications:
Advertising media, sports stadiums, airport station integrated information dissemination, business
establishments, public area.
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service;
4, Promote delivery;
5, Energy-saving;
6, Small order accepted.
