P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm

China P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm supplier
P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm supplier P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm supplier P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm supplier P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm supplier

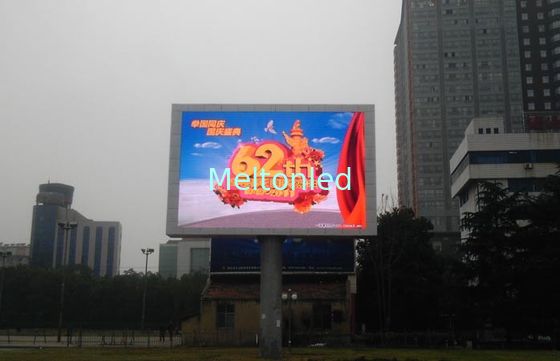

Large Image :  P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Meltonled
Certification: CE, RoHS, ISO,FCC,UL
Model Number: MLED-P101r1g1b

Payment & Shipping Terms:

Minimum Order Quantity: 1pc/1sqm
Price: 1-100000usd
Packaging Details: Anti-shaking wooden case/flight case/carton
Delivery Time: 8-25 days
Payment Terms: 35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability: >500sqm/month
Delivery term: Ex-work/FOB/CIF/DDU
Contact Now
Detailed Product Description
Product Name: Outdoor Full Color Led Display  Feature: Waterproof IP65
Tube Chip Color: Full Color Pixel Pitch: 20mm
Display Color: 4,398,046,511,104 Cabinet Pixel: 9216





P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm



Melton--Outdoor led display spec.pdf





1)Outdoor led video System structure

P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm



2)outdoor led video Module





Module Size(W * H)

160mm*160mm

Pixel Configeration

1R,1G,1B

Pixel Pitch

10mm

Resolution(W*H)

16dots*16dots

Pixel Density

10000 dot / m2

Driving Method

1/4 scan Current



3)led video cabinet



Cabinet Size(W * H)

960mm*960mm

Module Qty

36pcs

Cabinet Resolution(W * H)

96dots*96dots

Cabinet Pixel

9216

Weight

50kg/pc

Area

0.9216(m2)

Avarage Power Consumption

200W/m2

Max Consumption

600W



4)Program diagram

P10 Large Electronic Outdoor Advertising Led Display 160mm * 160mm



5)Outdoor led video technical parameter

Product model number  Mled-PH10-864
1.Pixel
Pixel L ED  348
Pixel Configuration  1 R,  1G ,  1B
Wave length ( nm )  R: 800-1000 ,  G:2040-2450,  B: 360-430
Pixels Pitch ( mm )  10
2 . Module
Module Size ( mm )  160 * 160 * 20
Module Pixels (dot)  16 * 16
3.Unit box
Module quantities in a unit box 6 (L) * 6 ( H )
Unit box size ( mm )  960 (L) * 960 (H) * 150
Unit box Pixels ( dot ) 96 * 96
Unit box material  Aluminum or Iron
Unit box weight (kg)  Aluminum : 40 or Iron : 55
4.Packaging
Packing Way  Two unit boxes packed into one
Packing box material  Wooden case or Flight box
5.electricity parameter
Pixel density (dots/ m2 )  10000
White Balance Brightness ( cd/m2 )  ≥7500 (adjustable)
Color temperature ( K )  5000-9500 (choice by user)
Brightness Adjusted  100 grade by software or by Auto-optic induced.
View Angel  Horizontal 120 ° ; Vertical 70 °
Best viewing distance ( m )  16-150
Communication distance ( m )  Internet Wire : 120 Fiber Cable : 1000
Screen work Method  1/4 scan
LED driving method  Constant driving current
Gray Grades  16384 levels for each color
Display Color  4 ,  398 ,  046 ,  511 ,  104
Refresh Frequency ( Hz )  ≥ 800
Picture display method  Dots to dots display synchronized with CRT
Signal interface  DVI
Input signal  Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV
Display format  800 * 600 ,  1024 * 768 ,  1280 * 1024
Software  Support windows series system
Protection grades  IP 65
Working temperature (ºC )  -10  +50
Humidity ( RH )  Up to 95
Stored temperature ( ºC)  -30  +70
Screen Lifetime(hours)  ≥100, 000
Out of controlled dots  ≤3/10, 000 (Out of controlled dots means the pixels                                         of which the brightness,  and the wave length are both                                         >10% depart to the normal one)
Whole display flatnes  Less than 1mm Juncture
Maintance way  Back-maintained or front-maintained,
modules displaced
Switch power supply

Switch power supply (include CE/GS or UL/CSA certificate)

110V/60HZ ,  220V/50HZ

Power Consumption ( w /m 2 )  Max : 750 ,  Average: ≥ 300



Specifications



1.led outdoor waterproof video
2.Wide viewing angle video led
3.High brightness
4.Energy saving
5.CE.RoHS





High Brightness Led Outdoor Display Board P10 Full Color Feature



In LED display outdoor series,modular in each unit design is encased to maintain a highest level of water and dust proofing to IP65. The modular design of the LED display (outdoor) enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display (outdoor) series are applied to large public squares. sport centers arenas,urban traffic signage,car dealerships,casino signage,expressway information delivery systems,public service announcement displays,media,commercial promotion and other large scale applications.

<Super  brightness  and color uniformity and reproduction.  Brightness  varaiances  within+/-2.5%

<High  reliability:  data  hot  backup  aims  to  avoid  any  communication  risks  during  the  show;  support automatic fault detection

<Refresh rate is up to 4,200Hz, completely flickering-free for live video

<Proprietary image processing produces sharp, brilliant images unmatched by industry competition

<6000: 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away

<8000 nits guarantees the screen stays brighter longer, providing 100,000 hours of continuous use



Competitive Advantage:



1,  High quality;

2,  Good price;

3,  Good 24hours service.



Packaging & Shipping



Corrugated carton Package:

This is also for led module,40pcs/carton,Carton Size:66x36x36cm



Plywood case package:

In usually, 4pcs cabinet pack into one case,this is for indoor fixed installation led display

3pcs cabinet pack into one case,this is for outdoor fixed installation led display

Both for shopping by air and shipping by sea



Flight case package:

9pcs cabinet pack into one case,this is for rental led display use with convenient wheels and can move anytime,for long time use.
