Product Details:
Payment & Shipping Terms:
|
| Name: | P8 SMD 3535 /2727 National Star Package Outdoor Full Color Led Display Modules | Pixel: | 8mm |
|---|---|---|---|
| Color: | Full Color | Size: | 256*128mm |
| Highlight: | P8 SMD 3535 led display board,Outdoor Full Color Led Display Modules |
||

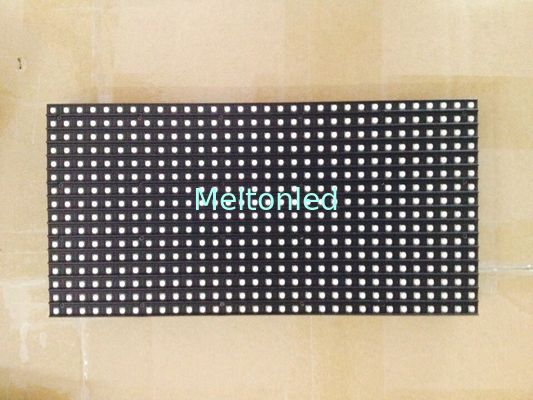

P8 SMD 3535 /2727 national star package outdoor full color led display modules
Specifications
1. even luminance
2. long service time
3. excellent character appearance
IP 65 Waterproof Slim Cabinet P10mm 1 R1G1B Aluminum or Iron Flashing LED Module CE, RoHS
Description:
1. Unique die-cast aluminum cabinet structure, stable, light, and durable;
2. Light, slim and dense, provide a better platform for the shows;
3. Precisely showing, quick responding, and flexible located installation, well performing in any site;
4. High gray handling technology, garanteed the best image quality;
5. High refresh rate as over 1500Hz.
Applications:
This kind of LED 1R1G1B full color led display is appliled for displaying advertising, city beautifying,
information publicity, great concerns and relative activities.
Specifications:
|
Product model number |
Mled-PH8-1 |
|
1.Pixel |
|
|
Pixel L ED |
3535 |
|
Pixel Configuration |
1 R, 1G , 1B |
|
Wave length ( nm ) |
R: 626-628 , G: 518-520 , B: 466-468 |
|
Pixels Pitch ( mm ) |
8 |
|
2 . Module |
|
|
Module Size ( mm ) |
256 * 128 * 10 |
|
Module Pixels (dot) |
32 * 16 |
|
3.Unit box |
|
|
Module quantities in a unit box |
4 (L) * 6 ( H ) |
|
Unit box size ( mm ) |
|
|
Unit box Pixels ( dot ) |
128 * 96 |
|
Unit box material |
Aluminum or Iron |
|
Unit box weight (kg) |
Aluminum : 25 or Iron : 35 |
|
4.Packaging |
|
|
Packing Way |
one box packed into one |
|
Packing box material |
Wooden case or Flight box |
|
5.electricity parameter |
|
|
Pixel density (dots/ m 2 ) |
15625 |
|
White Balance Brightness ( cd/m 2 ) |
≥ 6500 |
|
Color temperature ( K ) |
5000-9500 (choice by user) |
|
Brightness Adjusted |
100 grade by software or by Auto-optic induced. |
|
View Angel |
Horizontal 120 ° ; Vertical 120 ° |
|
Best viewing distance ( m ) |
8-150 |
|
Communication distance ( m ) |
Internet Wire : 120 Fiber Cable : 1000 |
|
Screen work Method |
1/8 scan |
|
LED driving method |
Constant driving current |
|
Gray Grades |
16384 levels for each color |
|
Display Color |
4 , 398 , 046 , 511 , 104 |
|
Refresh Frequency ( Hz ) |
≥ 800 |
|
Picture display method |
Dots to dots display synchronized with CRT |
|
Signal interface |
DVI |
|
Input signal |
Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV |
|
Display format |
800 * 600 , 1024 * 768 , 1280 * 1024 |
|
Software |
Support windows series system |
|
Protection grades |
IP 65 |
|
Working temperature (ºC ) |
-30+60 |
|
Humidity ( RH ) |
Up to 95 |
|
Stored temperature ( ºC) |
-30 +70 |
|
Screen Lifetime(hours) |
≥100, 000 |
|
Out of controlled dots |
≤3/10, 000 (Out of controlled dots means the pixels and the wave length are both >10% |
|
Whole display flatnes |
Less than 1mm Juncture |
|
Maintance way |
Back-maintained or front-maintained, |
|
Switch power supply |
Switch power supply |
|
Power Consumption ( w /m 2 ) |
Max : 1000 , Average: ≥ 600 |
