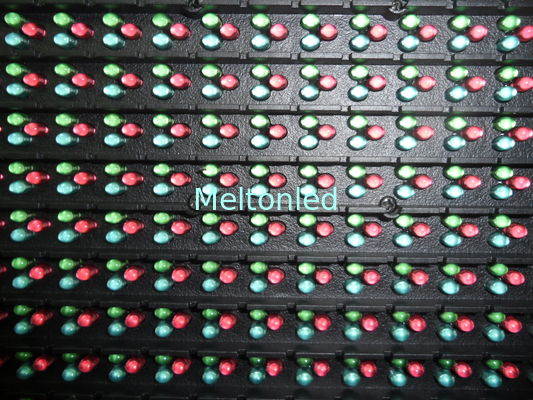

High Resolution Led Display Modules Long Lifespan P10
Outdoor P10 Aluminum or Iron Flashing Led Module Energy Saving
Description:
we are advertising LED display screen manufacturer and global wholesaler of large outdoor and indoor
full color electronic LED matrix display screens, LED signs and LED screens used for mayor advertising
campaigns; placed next to highways, or LED message and video displays for football stadiums, electronic
arrival and departure airport displays signs, LED screen displays for schools or shops and malls to
highlight products and services.
· Our LED display signs have the ISO9001:2000 Quality System Certification;
· CE Certification of our led display signs;
· Rohs Certificates;
· Excellent, Technical Innovation;
· Price performance ratio;
· Contract Performance and Credibility;
· LED Displays with high brightness LED´s;
· Modular LED display screens;
· Our LED Display Screens have two years warranty ;
· Post sale assistance (after sale);
· High expertise and know-how about LED display products;
Personalized sale and less than 24 hours response on all inquiries.
Applications:
This kind of LED 1R1G1B full color led display is appliled for displaying advertising, city beautifying,
information publicity, great concerns and relative activities.
Specifications:
|
Product model number |
Mled-PH10-2 |
|
1.Pixel |
|
|
Pixel L ED |
348 |
|
Pixel Configuration |
1 R, 1G , 1B |
|
Wave length ( nm ) |
R: 626-628 , G: 518-520 , B: 466-468 |
|
Pixels Pitch ( mm ) |
10 |
|
2 . Module |
|
|
Module Size ( mm ) |
160 * 320 * 20 |
|
Module Pixels (dot) |
16 * 32 |
|
3.Unit box |
|
|
Module quantities in a unit box |
6 (L) * 6 ( H ) |
|
Unit box size ( mm ) |
|
|
Unit box Pixels ( dot ) |
96 * 96 |
|
Unit box material |
Aluminum or Iron |
|
Unit box weight (kg) |
Aluminum : 40 or Iron : 55 |
|
4.Packaging |
|
|
Packing Way |
Two unit boxes packed into one |
|
Packing box material |
Wooden case or Flight box |
|
5.electricity parameter |
|
|
Pixel density (dots/ m 2 ) |
10000 |
|
White Balance Brightness ( cd/m 2 ) |
≥ 6500 |
|
Color temperature ( K ) |
5000-9500 (choice by user) |
|
Brightness Adjusted |
100 grade by software or by Auto-optic induced. |
|
View Angel |
Horizontal 110 ° ; Vertical 70 ° |
|
Best viewing distance ( m ) |
16-150 |
|
Communication distance ( m ) |
Internet Wire : 120 Fiber Cable : 1000 |
|
Screen work Method |
1/4 scan |
|
LED driving method |
Constant driving current |
|
Gray Grades |
16384 levels for each color |
|
Display Color |
4 , 398 , 046 , 511 , 104 |
|
Refresh Frequency ( Hz ) |
≥ 800 |
|
Picture display method |
Dots to dots display synchronized with CRT |
|
Signal interface |
DVI |
|
Input signal |
Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV |
|
Display format |
800 * 600 , 1024 * 768 , 1280 * 1024 |
|
Software |
Support windows series system |
|
Protection grades |
IP 65 |
|
Working temperature (ºC ) |
-10 +50 |
|
Humidity ( RH ) |
Up to 95 |
|
Stored temperature ( ºC) |
-30 +70 |
|
Screen Lifetime(hours) |
≥100, 000 |
|
Out of controlled dots |
≤3/10, 000 (Out of controlled dots means the pixels of and the wave length are both >10% |
|
Whole display flatnes |
Less than 1mm Juncture |
|
Maintance way |
Back-maintained or front-maintained, |
|
Switch power supply |
Switch power supply |
|
Power Consumption ( w /m 2 ) |
Max : 750 , Average: ≥ 260 |
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service.
