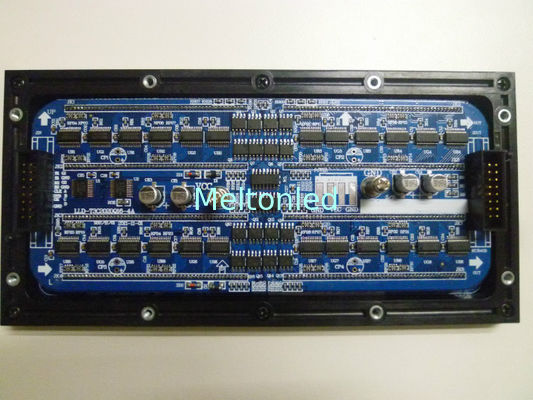

Slim Led Display Modules Low Power Consumption

Slim Led Display Modules Low Power Consumption
Slim Led Display Modules Low Power Consumption Slim Led Display Modules Low Power Consumption Slim Led Display Modules Low Power Consumption Slim Led Display Modules Low Power Consumption

Large Image :  Slim Led Display Modules Low Power Consumption

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Meltonled
Certification: CE, RoHS, ISO,FCC,UL
Model Number: MLED-R500-9
Payment & Shipping Terms:
Minimum Order Quantity: 1pc/1sqm
Price: 1-100000usd
Packaging Details: Anti-shaking wooden case/flight case/carton
Delivery Time: 8-25 days
Payment Terms: 35% T/T as prepayment,65% T/T as balance at factory
Supply Ability: >500sqm/month
Delivery term: Ex-work/FOB/CIF/DDU
Detailed Product Description
High Light:

digital led display board

,

smd led module

Slim Led Display Modules Low Power Consumption
Specification
1. light and durable
2. High refresh rate
3. High gray handling technology



Slim Cabinet P3mm 1R1G1B  SMD Aluminum or Iron Flashing LED Module With CE, RoHS

Description:

1. Unique die-cast aluminum cabinet structure, stable, light, and durable;

2. Light, slim and dense, provide a better platform for the shows;

3. Precisely showing, quick responding, and flexible located installation, well performing in any site;

4. High gray handling technology, garanteed the best image quality;

5. High refresh rate as over 1500Hz.

Applications:

This kind of LED 1R1G1B full color led display is appliled for displaying advertising,  city beautifying,

information publicity,  great concerns and relative activities.



Specifications:

Product model number


Mled-PH3-1

1.Pixel


Pixel L ED

5050

Pixel Configuration


1 R,  1G ,  1B


Wave length ( nm )


R: 626-628 ,  G: 518-520 ,  B: 466-468


Pixels Pitch ( mm )


10


2 . Module


Module Size ( mm )


320 * 160 * 10


Module Pixels (dot)


32 * 16


3.Unit box


Module quantities in a unit box


6 (L) * 8 ( H )


Unit box size ( mm )


576 (L) * 384 (H) * 120


Unit box Pixels ( dot )


192 * 128


Unit box material


Aluminum or Iron


Unit box weight (kg)


Aluminum : 40 or Iron : 55


4.Packaging


Packing Way


one box packed into one


Packing box material


Wooden case or Flight box

5.electricity parameter


Pixel density (dots/ m 2 )


10000


White Balance Brightness ( cd/m 2 )


≥ 7500


Color temperature ( K )


5000-9500 (choice by user)


Brightness Adjusted


100 grade by software or by Auto-optic induced.


View Angel


Horizontal 110 ° ; Vertical 70 °


Best viewing distance ( m )


16-150


Communication distance ( m )


Internet Wire : 120 Fiber Cable : 1000


Screen work Method


1/4 scan


LED driving method


Constant driving current


Gray Grades


16384 levels for each color


Display Color


4 ,  398 ,  046 ,  511 ,  104


Refresh Frequency ( Hz )


≥ 800


Picture display method


Dots to dots display synchronized with CRT


Signal interface


DVI


Input signal


Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV


Display format


800 * 600 ,  1024 * 768 ,  1280 * 1024


Software


Support windows series system


Protection grades


IP 45


Working temperature (ºC )


-10  +50


Humidity ( RH )


Up to 95


Stored temperature ( ºC)


-30  +70


Screen Lifetime(hours)


≥100, 000


Out of controlled dots

≤3/10, 000 (Out of controlled dots means the pixels of
 which the brightness

and the wave length are both >10%
depart to the normal one)

Whole display flatnes


Less than 1mm Juncture


Maintance way


Back-maintained or front-maintained,
modules displaced



Switch power supply


Switch power supply
(include CE/GS or UL/CSA certificate)
110V/60HZ ,  220V/50HZ



Power Consumption ( w /m 2 )


Max : 1000 ,  Average: ≥ 600






Competitive Advantage:

1,  Good quality;

2,  Good price;

3,  Good 24hours service;

4,  Green product;

5,  Fast delivery time.
