Product Details:
Payment & Shipping Terms:
|
Application: | TAXI,CAR | Color: | Full Color |
---|---|---|---|
IP: | Waterproof IP65 | ||
Highlight: | taxi top led display,LED Taxi Sign |

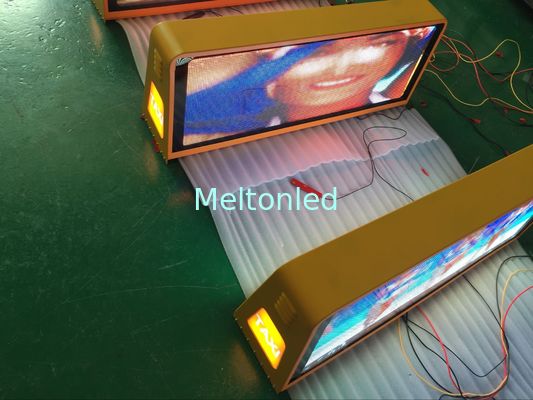

6mm Pitch Taxi LED Display Waterproof IP65 Full Color 128 x 16dot Resolution
Display Specification | ||||||||||
1 | Pixel pitch | 5 mm | ||||||||
2 | Resolution | 40,000 dots/sq.m | ||||||||
3 | Display size (each side) | W 0.96 × H 0.32 = 0.3072 sq.m | ||||||||
4 | Screen resolution (each side) | W 192 × H 64 = 12,288 | ||||||||
5 | Total module quantity (each side) | W 6 × H 2 = 12 pcs | ||||||||
6 | Total cabinet quantity | 1 pc | ||||||||
7 | Cabinet size (including frame) | W 1012 × H 408 × D 160 mm | ||||||||
8 | Power consumption (Max.) | 650 W | ||||||||
9 | Power consumption (Ave.) | 435 W | ||||||||
10 | Maximum Current | 54.5 Amp | ||||||||
LED Module Specification | ||||||||||
11 | LED composition | 1R 1G 1B | ||||||||
12 | LED type | SMD3528 | ||||||||
13 | Module resolution | W 32 × H 32 | ||||||||
14 | Module size | W 160 × H 160 mm | ||||||||
15 | Driving method | 1/8 scan constant current | ||||||||
Cabinet Specification | ||||||||||
16 | Cabinet material | Aluminum cabinet with frame | ||||||||
17 | Cabinet color | Silver | ||||||||
18 | Cabinet weight | about 23 kg | ||||||||
19 | Flatness | Less than 1mm juncture | ||||||||
Optical Parameters | ||||||||||
20 | Brightness | 3,000 nits/sqm | ||||||||
21 | Viewing angle | Horizontal 140°, vertical 70° | ||||||||
22 | Minimum viewing distance | 5 m | ||||||||
Power Supply | ||||||||||
23 | Power supply | DC 9 ~ 36V | ||||||||
24 | Output voltage | DC 5V | ||||||||
Control System | ||||||||||
25 | Control card | Sheenled | ||||||||
26 | Memory | 4G | ||||||||
27 | Control method | 3G | ||||||||
28 | Refresh rate | 480 HZ | ||||||||
29 | Refresh frame frequency | 60~85 HZ | ||||||||
Formats Supported | ||||||||||
30 | Video | AVI, WMV, MPG, MOV, DAT, VOB, MP4, FLV | ||||||||
31 | Animation | GIF, SWF | ||||||||
32 | Picture | JPG, BMP, WMF | ||||||||
Reliablity | ||||||||||
33 | Protection grades | IP65 | ||||||||
34 | Work temperature | -20~+60ºC | ||||||||
35 | Humidity(RH) | 10~90% | ||||||||
36 | LED Life span | More than 100,000 hours | ||||||||
37 | MTBF | 5000 hours | ||||||||
38 | Out of controll dot rate | Less than 1/10,000 |
1.LED car/ taxi/ bus display
Taxi top led display is placed in the rear window, rear tail or on the roof of the car, including LED modules, control systems and border frame. Taxis and buses are city public transportation vehicles throughout cities.They can display traffic information with moving signs; also become a new mobile media. The main application areas: taxi, bus, car, bus stops etc.
2. Features :
1) waterproof, radiation proof, good stability.
2) light weight, thin depth, strong adaptability.
3) simple control system, easy installation.
4) asynchronous control (several modes optional).
wooden case or flight case
1)Your inquiry related to our products or price will be replied in 24hrs
2)OEM&ODM,any your customized lightings we can help you to design and put into product
3)Distributoership are offered for your unique design and some our current models
4)Protection of your sales area,ideas of design and all your private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
