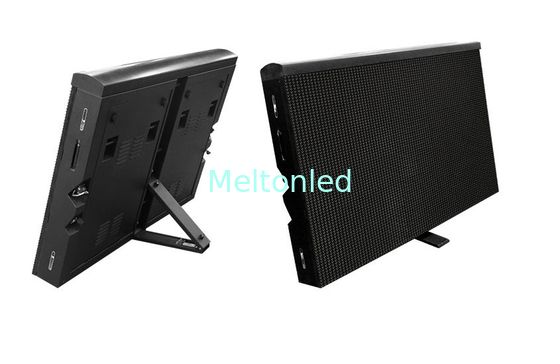

2016 Football stadium perimeter led screen display

2016 Football stadium perimeter led screen display
2016 Football stadium perimeter led screen display 2016 Football stadium perimeter led screen display 2016 Football stadium perimeter led screen display 2016 Football stadium perimeter led screen display

Large Image :  2016 Football stadium perimeter led screen display

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Meltonled
Certification: CE, RoHS, ISO,FCC,UL
Model Number: P10-stadium
Payment & Shipping Terms:
Minimum Order Quantity: 1pc/1sqm
Price: 1-100000usd
Packaging Details: Anti-shaking wooden case/flight case/carton
Delivery Time: 8-25 days
Payment Terms: 35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability: >500sqm/month
Delivery term: Ex-work/FOB/CIF/DDU
Detailed Product Description
Material: Die Casting Aluminum Color: Full Color
Pixel Pitch: 10MM Waterproof: Ip65
Name: 2016 Football Stadium Perimeter Led Screen Display
High Light:

electronic led display boards

,

stadium perimeter led display

2016 Football stadium perimeter led screen display

Specifications

1.48bit colors processing
2.Energy saving,Easy maintenance
3.Advanced dot adjusting
4.CE,ROHS



Waterproof module

IP65 waterproof capability satisfies outdoor permanent application.

Modular Design

Individual waterproof module and power box lead to flexible applications.

Modular Design

Angle ajustable

Adjust freely to 75 or 90 degrees to ansure the best possible viewing angles,(Only available on size:1280*960*150mm)

Angle ajustable

Convenient service

Back-up data and power design

Back-up data and power design

Back-up data and power route makes sure display work well even when some modules out of work;

Convenient supporting legs

Convenient supporting legs

Applications:  Stadium LED perimeter display is a winning option for sports advertising,as well as club gatherings etc.

Applications

Parameters Value Unit
Pixel pitch 10 mm
Brightness 7500 nit
Panel dimensions(W×H×D) 2560×960×150 mm
Panel dimensions(W×H×D) 100.78×37.80×5.91 Inch
Panel materail Steel
Weight 90 kg/panel
Pixel configuration 3-in-1 SMD
Module dimensions (W×H) 320×320  mm
Module dimensions (W×H) 12.60×12.60  Inch
Pixel matrix 256×96 pixels/ panel
Pixel density 10000 pixels/sq.m.
Refresh rate ≥2000 Hz
Gray scale per color 65536 level
Colors 281 trillion
Viewing angle(H/V) 120/120  deg.
IP rating(Front/Rear) IP65/IP54
Power consumption(max/avg) 555/185  W/sq.m.
Input voltage(AC) 110~240 V
Operating temperature -20 ~60
Operating humidity 10%~90%
Source compatibility(with video processor) AV, S-Video, VGA, DVI, HDMI, SDI, DP



Solution detailed instruction

1. Convenient to install and disassemble
Our cabinets feature simple designs, making them easy-to-install and disassemble. The cabinets include interlo-cks, as well as external signal and power sockets.

stadiums LED display solutions

2. Adjustable inclination angle
Generally, the LED perimeter banner display is placed vertically and the inclination angle is adjustable for the best possible viewing and camera shooting angles.

sports LED display solutions

Accessories





stadiums LED display solutions

System

stadiums LED display solutions

Competitive Advantage:

1,  Good quality;

2,  Good price;

3,  Good 24hours service;

4,  Promote delivery;

5,  Energy-saving;

6,  Small order accepted.
