Full Color Led Display Modules Energy Saving 50% P16 2R1G1B Super Brightness

Full Color Led Display Modules Energy Saving 50% P16 2R1G1B Super Brightness
Full Color Led Display Modules Energy Saving 50% P16 2R1G1B Super Brightness Full Color Led Display Modules Energy Saving 50% P16 2R1G1B Super Brightness Full Color Led Display Modules Energy Saving 50% P16 2R1G1B Super Brightness Full Color Led Display Modules Energy Saving 50% P16 2R1G1B Super Brightness Full Color Led Display Modules Energy Saving 50% P16 2R1G1B Super Brightness Full Color Led Display Modules Energy Saving 50% P16 2R1G1B Super Brightness

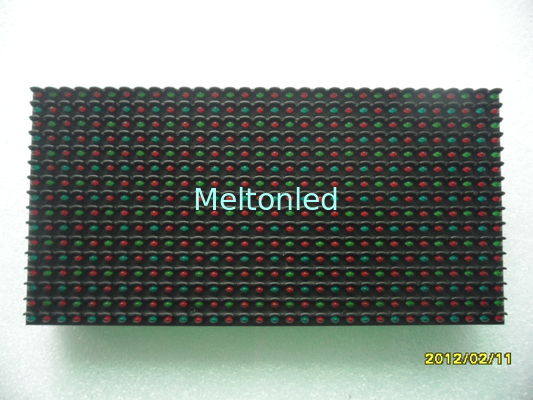

Large Image :  Full Color Led Display Modules Energy Saving 50% P16 2R1G1B Super Brightness

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Meltonled
Certification: CE, RoHS, ISO,FCC,UL
Model Number: P16
Payment & Shipping Terms:
Minimum Order Quantity: 1pc/1sqm
Price: 1-100000usd
Packaging Details: Anti-shaking wooden case/flight case/carton
Delivery Time: 8-25 days
Payment Terms: 35% T/T as prepayment,65% T/T as balance at factory, MoneyGram, Western Union
Supply Ability: >500sqm/month
Delivery term: Ex-work/FOB/CIF/DDU
Detailed Product Description
High Light:

digital led display board

,

smd led module

Full Color Led Display Modules Energy Saving 50% P16 Super brightness



Specifications:

Product model number

Mled-PH16-1

1.Pixel

Pixel L ED

346

Pixel Configuration

1R,  1G ,  1B

Wave length ( nm )

R: 626-628 ,  G: 518-520 ,  B: 466-468

Pixels Pitch ( mm )

16

2 . Module

Module Size ( mm )

256 * 128 * 20

Module Pixels (dot)

16 * 8

3.Unit box


Module quantities in a unit box

4 (L) * 6 ( H )

Unit box size ( mm )

1024 (L) * 768 (H) * 180

Unit box Pixels ( dot )

64 * 48

Unit box material

Aluminum or Iron

Unit box weight (kg)

Aluminum : 42 or Iron : 55

4.Packaging

Packing Way

Two unit boxes

Packing box material

Wooden case or Flight box

Packing box size (mm)

1150 * 950 * 480

5.electricity parameter

Pixel density (dots/ m 2 )

3906

White Balance Brightness ( cd/m 2 )

≥ 8500

Color temperature ( K )

5000-9500 (choice by user)

Brightness Adjusted

100 grade by software or by Auto-optic induced.

View Angel

Horizontal 120 ° ; Vertical 70 °

Best viewing distance ( m )

16-150

Communication distance ( m )

Internet Wire : 120 Fiber Cable : 1000

Screen work Method

Static

LED driving method

Constant driving current

Gray Grades

16384 levels for each color

Display Color

4 ,  398 ,  046 ,  511 ,  104

Refresh Frequency ( Hz )

≥ 800

Picture display method

Dots to dots display synchronized with CRT

Signal interface

DVI

Input signal

Video : PAL/NTSC optioned . VGA, Svideo, DVD, TV

Display format

800 * 600 ,  1024 * 768 ,  1280 * 1024

Software

Support windows series system

Protection grades

IP 65

Working temperature (ºC )

-10  +50

Humidity ( RH )

Up to 95

Stored temperature ( ºC)

-30  +70

Screen Lifetime(hours)

≥100, 000

Out of controlled dots

≤3/10, 000 (Out of controlled dots means the pixels of which the brightness

and the wave length are both >10% depart to the normal one)

Whole display flatnes

Less than 1mm Juncture

Maintance way

Back-maintained or front-maintained,
modules displaced

Switch power supply


Switch power supply (include CE/GS or UL/CSA certificate) 110V/60HZ ,  220V/50HZ

Power Consumption ( w /m 2 )

Max : 900 ,  Average: ≥ 450



Pre-sale service:

1. Reply enquiries within 24 hours.

2. Market research and forecast for

customer.

3. Provide unique and professional

solutions based on customer's

requirement.

4. Data sheet and samples offer.

5. Other services, such as special

factory visiting.

In-sale service:

1. Tracking report in producing.

2. Quality test report for every order.

3. Photos and videos

as per customer's requirement.

4. Free spare parts.

After-sale service:

1. Lifetime free maintenance and

upgrade.

2. Complaint respond period whitin

24 hours; maintenance guidance

and problem solution supplied

within 48 hours.

3. Customer satisfaction tracking

report.

4. Free technician training.

5. Special service for big project, such as stadium, exhibitions, squares

and so on.
