Product Details:
Payment & Shipping Terms:
|
Pixel Pitch: | 10mm | Color: | RGB |
---|---|---|---|
IC: | ICN 2038S | Brightness: | >3000nits |
High Light: | transparent glass led display,transparent display panel |
Full Color Electronic Led Curtain Display with 1024 Pixels / m2 Density P10
-Special design
-SMD3528 lamp.
-With flexible design, it is very easy to install.
-Module material: ABS plastic and Aluminum.
L E D P 1 0 3528
1. Features and Specifications:
1),LED video Curtain display with CE , RoHS,FCC.

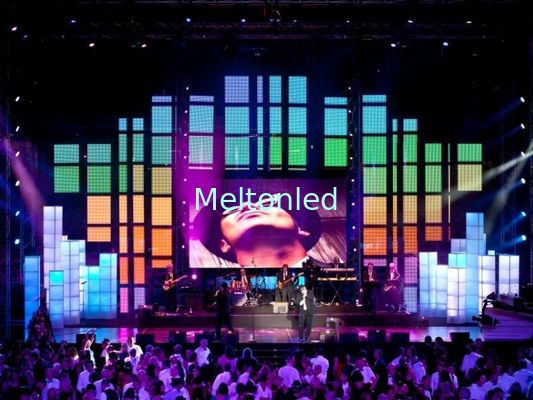

2),High brightness and support brightness automatically adjustment,Mainly used stage show.
3),Long lifespan, can reach more than 50,000 hours;
4),Easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED curtain display system;
5),Rich LED curtain display engineering experience both in domestic and international market.
2. Technical parameters:
Technical specification |
||
Product model |
OP-FSW-P10 |
|
Usage |
Outdoor |
|
LED type |
SMD 3528 |
|
Pixel Pitch (PH) |
10mm |
|
Module resolution |
32*128 |
|
Brightness(CD/M2 ) |
≥5000 |
|
Transparency |
%8 |
|
Refresh rate |
≥4000 |
|
Pixel density(dot/ M2 ) |
10000 |
|
Grey level |
65536 |
|
Working voltage |
DC24V |
|
Power consumption(W) |
350W(MAX) |
|
Viewing angel |
130°horizontal/ vertical |
|
Operating temperature(°C) |
-30~+50°C |
|
Control mode |
Synchronic |
|
LED lifetime |
50000 |
|
IP rating |
IP66 |
|
Size(L*W*H)(mm) |
1280*320*28mm |
|
Weight(KG) |
5.6kg |
|
Dimension |
0.4096 M2 |
|
Certificate |
CE RoHS |
Mechanical specification |
||
1 |
Eight linked-lamp strips |
|
2 |
10 pins signal cable |
|
3 |
2 pins DC24V power cable |
|
4 |
Small power case |
|
5 |
Left chain (dual) |
|
6 |
Right chain (single) |
|
A module is made of 16 small power cases; A eight linked-lamp strip in every small power case; 32 LED pixels in every lamp strip; The linkup between left chain and right chain by aluminum alloy at two side of the module. |
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service;
4, Promote delivery;
5, Energy-saving;
6, Small order accepted.
