Product Details:
Payment & Shipping Terms:
|
| Name: | Outdoor Led Commercial Advertising Display | Feature: | Waterproof Screen |
|---|---|---|---|
| Resolution(W*H): | 16dots*32dots | Pixel Pitch: | 10mm |
| Pixel Density: | 10000 Dots / M2 | Pixel Configeration: | 1R,1G,1B |
| Brightness: | ≥6000 Cd/sqm | Warranty: | 2-3 Years |
| Viewing Angle: | 140 /120 | Cabinet Material: | Iron Or Aluminum |
| High Light: | digital led display board,high resolution led display |
||

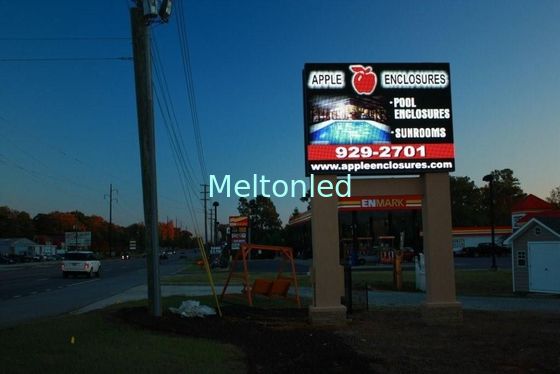

Outdoor led commercial advertising display panel price P10 SMD full color
Melton--Outdoor led display spec.pdf
P10 OUTDOOR P10 SMD 3IN1 TECHNICAL PARAMETERS
|
Unit Module |
Item | Parameter |
| Model Number | P10-2S | |
| Module size | 320mm*160mm | |
| Pixel pitch | 10mm | |
| Pixels Density | 10000/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD3535 | |
| Pixel resolution | 32dots(W)*16 dots(H) | |
| Max Power | 45W | |
| Module thickness | 17.05mm | |
| Weight | 0.51kg | |
| Drive type | Constant drive | |
| Scan mode | 1/2 1/2can | |
| Port type | HUB75 | |
| Brightness of white balance | 7500cd/m2 |
|
LED Cabinet |
Dimension | 640mm*640mm |
| Monomer Module Number | 8pcs | |
| Power supply | 5V/40A*2 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 64mm*64mm | |
| Best viewing distance | 10M50M | |
| Best viewing angle | 160(W) 120(H) | |
| Temperature |
storage:-35+85 working:-20+50 |
|
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
|
Power |
Working voltage | AC220V10% |
| Average Power consumption | <350W/ | |
| Max.Power consumption | <880W/ | |
| Current | <20mA(single LED) | |
|
Control system |
CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | >2000HZ | |
| / Grey scale/colors |
16384,16.7M 16384gray level/16.7M colors |
|
| MTBF | >9000hours | |
| Power switch | Automatic switch | |
| Display Mode | 800*600/1024*768 |
Corrugated carton Package:
This is also for led module,40pcs/carton,Carton Size:66x36x36cm
Plywood case package:
In usually, 4pcs cabinet pack into one case,this is for indoor fixed installation led display
3pcs cabinet pack into one case,this is for outdoor fixed installation led display
Both for shopping by air and shipping by sea
Flight case package:
9pcs cabinet pack into one case,this is for rental led display use with convenient wheels and can move anytime,for long time use.
