Product Details:
Payment & Shipping Terms:
|
| Product Name: | P20 Digital Advertising Screen Led Display Panel Price | Usage: | Advertising |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixel Pitch: | 16mm |
| Gray Scale: | 65536grade | Frame Frequency: | 60HZ |
| Brightness: | ≥6000 Cd/sqm | Warranty: | 2-3 Years |
| Display Function: | Video | ||
| Highlight: | digital led display board,video display boards |
||

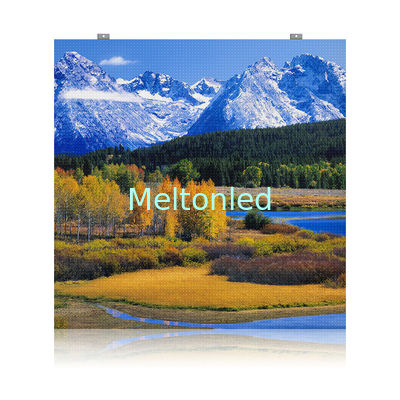

P20 Digital Advertising screen led display panel price
Melton--Outdoor led display spec.pdf
1) System structure
2)Led Module
|
Module Size(W * H) |
256mm*128mm |
Pixel Configeration |
2R,1G,1B |
|
Pixel Pitch |
16mm |
Resolution(W*H) |
16dots*8dots |
|
Pixel Density |
3906 dot / m2 |
Driving Method |
static Current |
3)Led cabinet
|
Cabinet Size(W * H) |
1024mm*768mm |
Module Qty |
20pcs |
|
Cabinet Resolution(W * H) |
64dots*48dots |
Cabinet Pixel |
4096 |
|
Weight |
56kg/pc |
Area |
1.23(m2) |
|
Avarage Power Consumption |
600W/m2 |
Max Consumption |
1200W/m2 |
4)Led Video wall technical parameter
|
Operating Humility |
10% ~ 90% RH |
|
Oprating Temprature |
-20°C ~ +60°C |
|
Optimal Viewing Distance |
10m-60m |
|
Display Color |
1,070,000,000 |
|
Gray Scale |
65536grade |
|
Brightness control |
256grade |
|
Frame Frequency |
60HZ |
|
Refresh Speed |
>3840HZ |
|
Power Supply |
220V/50HZ |
|
MTBF |
≥10,000hours |
|
Life Span (50% brightness) |
≥100,000hours |
|
Control Mode |
synchronization with PC |
|
Input Signal Format |
VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV |
|
Operating System |
WINDOWS(98,2000,XP,Vista) |
Outdoor advertising video led digital Billboard:
1.RoHS and CE,CCC,UL
2.Waterproof IP65
3.Super brightness.8000nits
4.Competitive price,high quality
Outdoor advertising video led display board
1.Applications:
Outdoor full color digital billboard are very popular in LED display advertising field. This type digital billboards are widely used Outdoor plaza,Outdoor building,stadium,shopping mall,cross road,highway, airport etc;
2.Features :
In LED display outdoor series,modular in each unit design is encased to maintain a highest level of water and dust proofing to IP65. The modular design of the LED display (outdoor) enables you to create customized screen surfaces of virtually any size in either 4:3 or 16:9 ratios. Typically the LED display (outdoor) series are applied to large public squares. sport centers arenas,urban traffic signage,car dealerships,casino signage,expressway information delivery systems,public service announcement displays,media,commercial promotion and other large scale applications.
<Super brightness and color uniformity and reproduction. Brightness varaiances within+/-2.5%
<High reliability: data hot backup aims to avoid any communication risks during the show; support automatic fault detection
<Refresh rate is up to 4,200Hz, completely flickering-free for live video
<Proprietary image processing produces sharp, brilliant images unmatched by industry competition
<6000: 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away
<8000 nits guarantees the screen stays brighter longer, providing 100,000 hours of continuous use
Competitive Advantage:
1, Good quality;
2, Good price;
3, Good 24hours service;
4, Promote delivery;
5, Energy-saving;
6, Small order accepted.
