Product Details:
Payment & Shipping Terms:
|

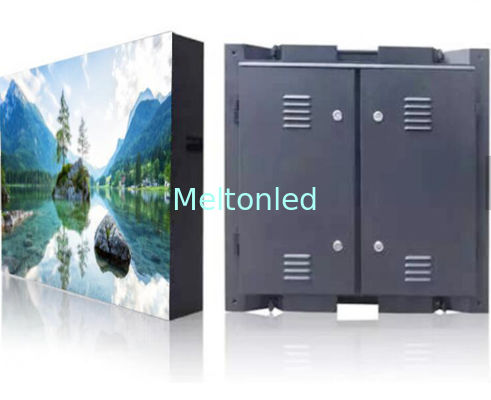

| Product Name: | High Quality Cheap Price P5 Outdoor Advertising Led Display Screen | Pixels Density: | 40000dots/m2 |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B | Weight: | 0.45kg |
| Drive Type: | Constant Drive | Brightness Of White Balance: | ≥5500cd/m2 |
| Dimension: | 640mm*640mm | ||
| High Light: | video display boards,high resolution led display |
||
Product description
1,slim and lightweight,clear display
2,Utra high protection class
3,common good,flexible assembly
P5 OUTDOOR P5 SMD 3IN1 TECHNICAL PARAMETERS
| Unit Module | Item | Parameter |
| Model Number | P5-8S | |
| Module size | 320mm*160mm | |
| Pixel pitch | 5mm | |
| Pixels Density | 40000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD1921 or 2525 | |
| Pixel resolution | 64dots(W)*32dots(H) | |
| Max Power | 45W | |
| Module thickness | 17.05mm | |
| Weight | 0.45kg | |
| Drive type | Constant drive | |
| Scan mode | 1/8scan | |
| Port type | HUB75 | |
| Brightness of white balance | ≥5500cd/m2 |
|
LED Cabinet |
Dimension | 640mm*640mm |
| Monomer Module Number | 8pcs | |
| Power supply | 5V/40A*2 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 128mm*128mm | |
| Best viewing distance | 5M～100M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ working:-20℃～+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 390W/㎡ | |
| Max.Power consumption |
≤980W/㎡
|
|
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 65536gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Shipping
Company information
1.MLED became a leader in the LED industry by offering quality, custom, and durable products to customers worldwide.
2.Our company owns a group of high-quality professional and technical personnel and advanced modern sophisticated production equipment.
FAQ
1.Q: Can be your screen waterproof?
A: Yes, the IP level can reach to IP65 for outdoor screens
2. Q: How can i place an order?
A: Please provide the details of your requirements (installation site, size, viewing angle) as clear as possible, then we can send you the solution at the first time. For further discussion, it is better to contact us with Skype/whatsapp /phone.
3. Q: What is the lead time for order?
A: Normally 10-15 days and the exact time depends on your order quantity, sometimes we have stock, it can be delivered within 7 days.
4. Q: Which brand of LED do you use for LED screen?
A: We can adopt LED from Nationstar, Cree and Nichia and usually our customers decide which brand they use
