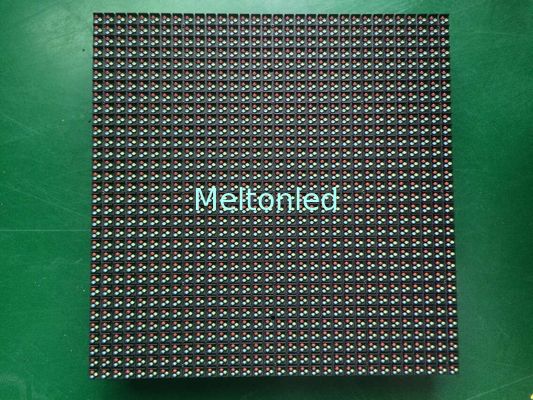

High Brightness P10 Full Color led display module outdoor For Advertising

High Brightness P10 Full Color led display module outdoor For Advertising
High Brightness P10 Full Color led display module outdoor For Advertising

Large Image :  High Brightness P10 Full Color led display module outdoor For Advertising

Product Details:
Place of Origin: China
Brand Name: MLED
Certification: CE-ROHS
Model Number: P10
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD 8.2-20 piece
Packaging Details: air flight case/cartoon case/poly wooden case
Delivery Time: 5-15work day
Payment Terms: L/C, D/A, T/T
Supply Ability: 100000 piece per month
Detailed Product Description
Product Name: High Brightness P10 Full Color Led Display Module Outdoor For Advertising Pixel Configuration: 1R1G1B
Max Power: 16W Scan Mode: 1/4scan
Dimension: 640*640mm Power Supply: 5V/60A*1 Pcs
Best Viewing Angle: 160°(W) 120°(H) Thickness: 80mm
High Light:

led display board

,

smd led module

High Brightness P10 Full Color led display module outdoor For Advertising

Specification

1,Utra high protection class

2,slim and lightweight,clear display

3,Common good,flexible assembly

P10 Outdoor DIP TECHNICAL PARAMETERS

Unit Module Item Parameter
Model Number P10-4S
Module size 160mm*160mm
Pixel pitch 10mm
Pixels Density 10000dots/m2
Pixel configuration 1R1G1B
Package mode DIP346
Pixel resolution 16dots(W)*16dots(H)
Max Power 16W
Module thickness 16-18mm
Weight 0.45kg
Drive type Constant drive
Scan mode 1/4scan
Port type hub75
Brightness of white balance ≥8000cd/m2

LED

Cabinet

Dimension 640mm*640mm
Monomer Module Number 16
Power supply 5V/60A*1 pcs
Thermal discharge anto
Pixel per cabinet 64*64dots
Best viewing distance 6M~40M
Best viewing angle 160°(W) 120°(H)
Temperature

storage:-35℃~+85℃
working:-20℃~+50℃

Relative humidity 10%-95%
Thickness 80mm
Power Working voltage AC220V±10%
Average Power consumption 270W/㎡
Max.Power consumption

≤680W/m2


Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

Driving device Constant drive IC
Refresh frequency ≥1200HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥9000hours
Fire rate Grade one
Display Mode ≥800*600/1024*768


High Brightness P10 Full Color led display module outdoor For Advertising 0

High Brightness P10 Full Color led display module outdoor For Advertising 1
High Brightness P10 Full Color led display module outdoor For Advertising 2
Our factory



High Brightness P10 Full Color led display module outdoor For Advertising 3





Our certificate



High Brightness P10 Full Color led display module outdoor For Advertising 4



Packaging



(1)Wooden case: Wooden case is only for one time using transportation.For the fixed installation ledpanel system, wooden case packing is the only way and the best way for packing







(2)Flight case: The LED air box is equipped with a clapboard and shock-proof cushioning material. It is shock-proof and shock-proof.;Casters can be installed in the LED air box, which is highly mobile and flexible.;Can be customized according to customer requirements;if your led display screen system is for the rental use, please choose the flight case for your led display screen.







(3)Carton box: It is the inexpensive packing method for the led display,which is mainly for the small screen and short shipping distance.





High Brightness P10 Full Color led display module outdoor For Advertising 5



FAQ



1. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star and colorlight or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time



2.How about the quality?

Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality



3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days

4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it's free maintenance and ship back new ones for replacement.
