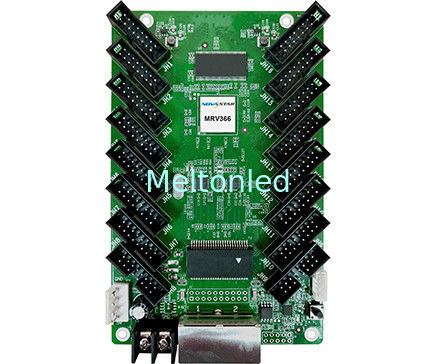

USB/WIFI/RF/GPRS/GSM NOVASTAR MRV366 full color led display control receiving card

Specifications:

MRV366

Resolution : 512x256

RGB Data Output :32 groups

Monitoring Card Applicable :—

Support Memory on Module :—

HUB75 Interface :Integrates 16 standard HUB75 connectors

Certification :RoHS

The MRV366 is a new receiving card developed by NovaStar. A single MRV366 loads up to 512x256 pixels.


The MRV366 supports pixel level brightness and chroma calibration, which effectively removes color difference, greatly improves display consistency of LED images, and presents finer displays to users.


Software and hardware designs of the MRV366 have fully concerned users'deployment, operating and maintenance scenarios, enabling easier deployment,more stable operating and more efficient maintenance.


Hardware design:
Integrates 16 standard HUB75 connectors, which makes the HUB board unnecessary.
Adopts the Gigabit Ethernet port, which can connect to the PC.


Software design:
Supports pixel level brightness and chroma calibration.
Supports setting of images pre-stored in the receiving card.
Supports status detection of temperature, voltage, Ethernet cable
communication and video source signals.
Supports the 5-pin LCD module.
