IP65 Waterproof outdoor P10 Led Billboard Display rental / Full Color electronic sign boards

China IP65 Waterproof outdoor P10 Led Billboard Display rental / Full Color electronic sign boards supplier
IP65 Waterproof outdoor P10 Led Billboard Display rental / Full Color electronic sign boards supplier IP65 Waterproof outdoor P10 Led Billboard Display rental / Full Color electronic sign boards supplier IP65 Waterproof outdoor P10 Led Billboard Display rental / Full Color electronic sign boards supplier IP65 Waterproof outdoor P10 Led Billboard Display rental / Full Color electronic sign boards supplier IP65 Waterproof outdoor P10 Led Billboard Display rental / Full Color electronic sign boards supplier

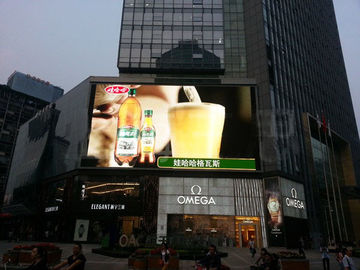

Large Image :  IP65 Waterproof outdoor P10 Led Billboard Display rental / Full Color electronic sign boards

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Meltonled
Certification: CE, RoHS, ISO,FCC,UL
Model Number: P10-M10-F1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc/1sqm
Price: 1-10000usd/sqm
Packaging Details: Anti-shaking wooden case/flight case/carton
Delivery Time: 7-15 working days
Payment Terms: 35% T/T as prepayment,65% T/T as balance at factory, MoneyGram, Western Union
Supply Ability: >500sqm/month
Contact Now
Detailed Product Description
Product Name: IP65 Water Proof P10 Rental Led Screen Outdoor From Shenzhen With 2 Years Warrantys Usage: Outdoor
Tube Chip Color: Full Color Pixel Pitch: 10mm
Pixel Composition: 1R1G1B LED Dots Per Square Meter: 10000
Waterproof: IP65 Brightness: 10000cd

IP65 water proof P10 rental led screen outdoor from shenzhen with 2 years warrantys

Specifications

Item Techinical Specifications
Pixel Pitch 8mm 10mm 12mm 16mm
LED Configuration SMD 3-in-1(SMD3535) DIP246 (1R1G1B) DIP246 (1R1G1B) DIP246 (1R1G1B)
Pixel Density 15625 pixels/sq.m 10000 pixels/sq.m 6944 pixels/sq.m 3906pixels/sq.m
Module Size 256mm*128mm 160mm*160mm 192mm*192mm 256mm*128mm
Module Resilution 32pixel*16pixel 16pixel*16pixel 16pixel*16pixel 16pixel*8pixel
Cabinet Size 1024mm*1024mm 960mm*960mm 960mm*960mm 1024mm*1024mm
Cabinet Resolution 128pixels*128pixels 96pixels*96pixels 80pixels*80pixels 64pixels*64pixels
Cabinet Material Iron/Aluminum Iron/Aluminum Iron/Aluminum Iron/Aluminum
Cabinet weight 50kg/sqm or 40kg/sqm 50kg/sqm or 40kg/sqm 50kg/sqm or 40kg/sqm 50kg/sqm or 40kg/sqm
Brightness 6000cd/sqm 8000cd/sqm 7500cd/sqm 8500cd/sqm
Colour temperature 3500K-9500K(adjustable) 3500K-9500K(adjustable) 3500K-9500K(adjustable) 3500K-9500K(adjustable)
Viewing Angle H:140°/V:140° H:110°/V:55° H:110°/V:55° H:110°/V:55°
Brightness Uniformity ≥97% ≥97% ≥97% ≥97%
Ave. Power consumption 240 W/sqm 200 W/sqm 200 W/sqm 240 W/sqm
Max. Power consumption 800W/sqm 600W/sqm 600W/sqm 800W/sqm
Best Viewing Distance ≥8 ≥10 ≥12 ≥16
Contrast ratio 5000:1 5000:1 5000:1 5000:1
Frame rate 50/60 Hz/sec 50/60 Hz/sec 50/60 Hz/sec 50/60 Hz/sec
Refresh rate ≥1200Hz ≥1200Hz ≥1200Hz ≥1200Hz
Drive Mode 1/4 scan 1/4 scan 1/4 scan Static contant current
Brightness Adjustment Manual/Auto/Programmable
Input Voltage AC220V/50HZ or AC110V/60HZ (±10%)
Output Voltage 5V,40A
Grey scale levels R(256bit) x G(256bit) x B(256bit)
Display Colors R(1024) x G(1024) x B(1024)
Protection Level IP65
Life-span 100,000 hours
MTBF 10,000 hours
Malfunction dot rate < 0.0001
Storage Temp/Humidity -40~+65℃/10~90%RH
Operating Temp/Humidity -20~+65℃/10~90%RH
Control System Synchronous/Asynchronous/Wifi/3G Wireless for choice
Input Signal RF,TV,RGB,S-VIDEO,PAL,DVI,HDMI,VGA,SDI,AVI,RGBHV,CVBS,etc
PC Operating System Microsoft Windows 7, 8, 98, 2000, XP and Vista



Function and Technology Character
(1)High bright:>7500cd/m2
(2)Vision angle:+140°
(3)Different languages:English/chinese/Japanese/Korean/Hebrew/Spanish and so on.
(4)Can input and change information by your computer(with software and USB interface)
(5)Can save 70 messages,every message is made up of 512 english characters
(6)Dot matrix:16*16
(7)Support Hypertext messages,many messages can be combined and display as your demand.
(8)Can set the font size and font color as you need.
(9)Support BMP/JEPG/GIF format,support flash format.
(10)Can adjust the brightness by manual or can set the brightness by computer.
(11)Can set the time/date of every message
(12)Can on/off by manual or automatically.
(13)Can be with clock and battery(When the power is cut off,it will not be off),can show time between messages.
(14)Power:25W,working temperature:-10°C- 49°C,working humidness:0%-95%

(15)Adapter:AC110V/220V



Our service for you:



1. Pre-sales: collect customers' all information/accoding to customer's requiements,select technical scheme,considering the availability,usability,maintainability,choose best solution for customers.



2. On sales: strictly follow the production plan,professional installation instruction,on-site field debugging.guidance using the led display



3. After sales: collect complaint information(including all kinds of contacts),in time confirm complaint information,analysis problem and give solutions

 Payment and Shipping



Many different payment terms are available for Babbitt.



Babbitt is willing to help you arrange the international transportation to your places and countries via different modes of transportation.
