Product Details:
Payment & Shipping Terms:
|
| Name: | P6 LED Indoor Display Board For Car Show, Conference Center | Usage: | Advertising Board |
|---|---|---|---|
| Screen Dimension: | Customized Size | Display Function: | Video |
| Brightness: | 5500-6500nits | Warranty: | 3 Years |
| Module Size: | 192*192mm | Life Span: | 100000hours |
| Color: | Full-color | Power Supply: | Meanwell / G-energy |
| High Light: | digital led billboards,outdoor advertising led display,Conference Center LED Billboard Display |
||
TECHNICAL PARAMETERS
| Unit Module | Item | Parameter |

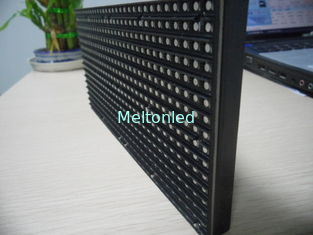

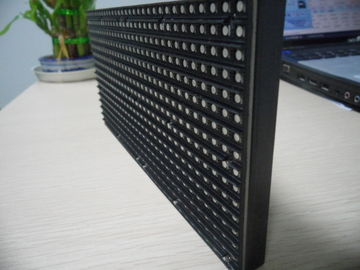

| Model Number | P6-8S | |
| Module size | 192mm*96mm | |
| Pixel pitch | 6mm | |
| Pixels Density | 277777dots/m2 | |
| Pixel configuration | 1R1G1B | |
| Package mode | SMD 3528 | |
| Pixel resolution | 32dots(W)*16dots(H) | |
| Max Power | 12W | |
| Module thickness | 12-14mm | |
| Weight | 0.2kg | |
| Drive type | Constant drive | |
| Scan mode | 1/8scan | |
| Port type | hub75 | |
| Brightness of white balance | ≥2000cd/m2 |
|
LED Cabinet |
Dimension | 576mm*576mm |
| Monomer Module Number | 18 | |
| Power supply | 5V/40A*2 pcs | |
| Thermal discharge | anto | |
| Pixel per cabinet | 96*96dots | |
| Best viewing distance | 6M～40M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ working:-20℃～+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 80mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 125W/㎡ | |
| Max.Power consumption |
≤310W/㎡
|
|
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1200HZ | |
| Grey scale/colors | 4096gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Fire rate | Grade one | |
| Display Mode | ≥800*600/1024*768 |
core value is "Quality Assurance,Lifetime Service" and guarantee to the customers: No Compaint.
At the same time,MELTON strives to benefit employees,shareholders and business partners.
We balance the short-term and long-term benefits to realize sustained development.
For our Customer: Good price,high quality products and 24hours services
For our Staff: Providing good sale enviroment and good welfare
For our Shareholder: Honest cooperation and double win.
For Society: Make the world bright,make the earth green.
