LED dance floor screen of interactive radar system p3.91 500*1000mm aluminum cabinet

LED dance floor screen of interactive radar system p3.91 500*1000mm aluminum cabinet
LED dance floor screen of interactive radar system p3.91 500*1000mm aluminum cabinet

Large Image :  LED dance floor screen of interactive radar system p3.91 500*1000mm aluminum cabinet

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Meltonled
Certification: CE, RoHS
Model Number: P3.91-D1001

Payment & Shipping Terms:

Minimum Order Quantity: 1pc/1sqm
Price: 850-1000usd/sqm
Packaging Details: Anti-shaking wooden case/flight case/carton
Delivery Time: 12-15 days
Payment Terms: 35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram, L/C
Supply Ability: >50000sqm/month
Delivery term: Ex-work/FOB/CIF/DDU
Detailed Product Description
Name: LED Dance Floor Screen Of Interactive Radar System P3.91 500*1000mm Aluminum Cabinet Application: Advertising Play Game
Color: Full Color Brightness: >2000cd
Certification: CE,RoH Waterproof: IP21

LED dance floor screen of interactive radar system p3.91 500*1000mm aluminum cabinet



Specifications



The Advantage of the Indoor Dance Floor LED Screen

1.Fully waterproof (can be washed directly with water), strong shock resistance, good slip resistance (the actor can jump on it at will, will not slip), the bearing capacity is large (the car can be directly crushed, the load point is 2 tons), A single box can fine-tune the height difference between the cabinets, the mask is PC+ composite material, has anti-UV function, can be exposed to the sun (the screen surface will not yellow), appearance beautiful, high definition, high brightness, good heat dissipation, Easy to install, soft and clear color.

2.One-screen multi-purpose: It can be used as color brick when tiling; it can be used as stage main screen or color screen when stacking or lifting.

3.This product can be upgraded to a sensor screen through sensor or infrared technology to interact with the audience.

LED Module
pixel pitch 3.91mm
module size 250*250mm
module resolution 64*64dots
Arrangement form Vertical row
Scan 1/16scan
Application Indoor
Weight 0.5KG

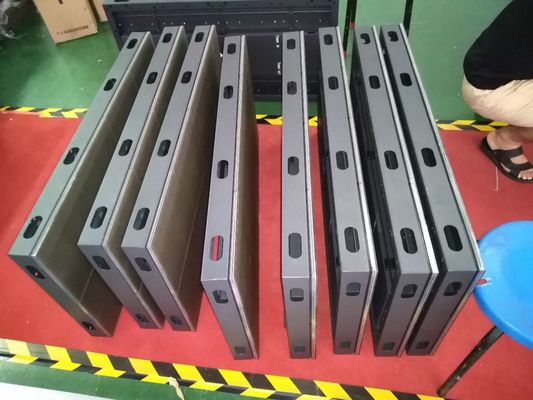

LED Cabinet
Cabinet Size 500*800mm*85
Cabinet resolution 128*128 dots
module quantity 2*2pcs
LED driver quantity G-energy/Chuanglian/Meanwell/Youyi
Material Die casting aluminum
Receiving card 1pcs
Weight 15KG/PCS
Load-bearinng 2T/m³




LED Screen
Pixel density 65536dots/Sqm Continuous Working Hours >72 hours
Ave power consumption ≥230W/Sqm Using Life 100,000 hours
Max power consumption ≤800W/Sqm MTBF >10,000H
Optimum Viewing Distance(m) ≥4mm Scatter OOC Point <0.01%
Brightness ≥2200cd Continuous OOC Point None
Refresh Rate ≥1920 frame/s IP Grade IP45/IP30
LED Drive mode Constant Current Working Temperature -35C----+60C
Display color 17M——69G Working Humidity 10---70%



Applications:
This kind of LED SMD full color led display is appliled for displaying advertising,  city beautifying,
information publicity,  great concerns and relative activities.
