Product Details:
Payment & Shipping Terms:
|
| Certification: | CE,CE UL RoHS,FCC | Name: | Outdoor Advertising P5 Full Color Led Screen High Brightness |
|---|---|---|---|
| Usage: | Outdoor | Display Function: | Video |
| Screen Dimension: | 320*160mm | Tube Chip Color: | Full Color |
| Brightness: | 6500-7000cd/sqm | Warranty: | 2 Years |
| Life Span: | 100000hours | Module Size: | 320mm*160mm |
| Color: | 1R1G1B | Led Chip: | 2121 |
| Pixel Pitch: | 5mm | Scan Mode: | 1/16 |
| Refresh Rate: | 1920hz | ||
| High Light: | video display boards,high resolution led display |
||
Outdoor Advertising P5 full color led screen High Brightness led display
TECHNICAL PARAMETERS
| Unit Module | Item | Parameter |
| Model Number | P5-8S | |
| Module size | 320mm*160mm | |
| Pixel pitch | 5mm | |
| Pixels Density | 40000dots/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD1921 or 2525 | |
| Pixel resolution | 64dots(W)*32dots(H) | |
| Max Power | 45W | |
| Module thickness | 17.05mm | |
| Weight | 0.45kg | |
| Drive type | Constant drive | |
| Scan mode | 1/8scan | |
| Port type | HUB75 | |
| Brightness of white balance | ≥5500cd/m2 |
|
LED Cabinet |
Dimension | 640mm*640mm |
| Monomer Module Number | 8pcs | |
| Power supply | 5V/40A*2 pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 128mm*128mm | |
| Best viewing distance | 5M～100M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ working:-20℃～+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 85mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | 390W/㎡ | |
| Max.Power consumption |
≤980W/㎡
|
|
| Current | ≤20mA(single LED) | |
| Control system | CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors | 65536gray level/16.7M colors | |
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |

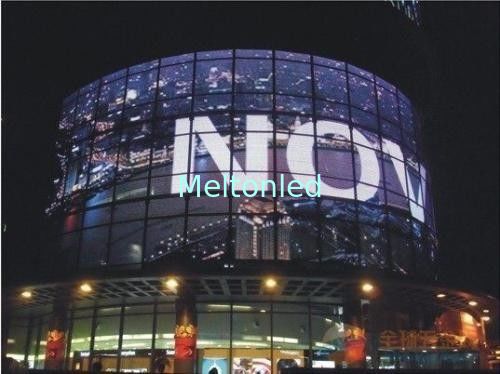

PICTURES
COMPANY INFORMATION
Melton is a professional manufacturer of Led Module/ Indoor Outdoor LED Display//Rental Stage Led Display/Led Strip Display/Taxi Top Led Display/Lamp Pole Led Display/ Led Billboard in Shenzhen
Our Company: Melton covers 2000square meters with super clean, antistatic workshop, the most advanced equipment, patching, soldering tin, gluing, aging and testing, have own patented technology.
Our products: are CE approved, RoHS compliant, C-TICK and FCC certificated
We have been exported toUSA,Canada,Argentina,Brazil,Ecuador,Venezuela,Honduras,Germany,Spain,Moldova,Poland,Netherlands,Russia,Sweden,France,Belgium,Turkey,Israel,Saudi Arabia, South Africa, Uganda, Egypt, Angola, India, Vietnam, Thailand, New Zealand, Australia and other 50 countries and regions, and gained a great reputation from customers.
FAQ
Q1,How to arrange payment?
Our payment terms in usually is T/T payment, for sample and small order,Western union,Paypal or Moneygram also be acceptable
Q2,What is our warranty?
Our warranty from 5year to 1year basis on different type led screen,In usually every screen we will ready more extra led screen moduless as spare modules,if some modules happen fails,you can replace the fail modules by our spare modules,When all the spare modules use out,You can send back these modules to us for repair,and we will send to you after repair and testing&aging well
Q3,How to be our distributor?
To be our distributor,We can share our profit together with you in every year,Also we can send our engieer or sales to your compay to support your business,also for led screen after-service,We will together with you to the after-service in the whole led screen life time
Q4, How to maintence led screen?
In usually every year to maintence led screen one time,clear the led mask,checking the cables connection,if any led screen modules fail,you can replace it with our spare modules
