High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor

High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor
High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor

Large Image :  High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor

Product Details:
Place of Origin: China
Brand Name: MLED
Certification: CE/RoHS
Model Number: P6
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meter
Price: USD 605-700 Per Square Meter
Packaging Details: Carton box/Poly wooden case/ Flight case
Delivery Time: 5-7Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Square Meter Per Month
Detailed Product Description
Product Name: Outdoor P6 High Brightness 3G/wifi Street Light Advertising Pole Led Display/ Billboard Brightness: 6500cd/sqm
Led Chip: Epistar + Opto + Silan Driving Method: 1/8 Scaning
Power Supply: G-energy Cabinet Size: 576mm*576mm
Warranty: 2 Years
High Light:

digital led display board

,

video display boards

outdoor P6 high brightness 3G/wifi street light advertising pole led display/ billboard


Product advantages

1. Large scale of networking, unlimited number of LED display screens;



2. The program is played synchronously, with better visual effect;



3. Supporting data center server software, it can centralize the management of all LED displays, control group screens and check the online status in real time.



4. Fast transmission speed, suitable for sending videos, animations, pictures and other programs.



5, can install audio, monitoring, USB charging, etc.;



6, not limited by distance, easy installation and maintenance;



7. The modular design of the product facilitates maintenance and repair.



8. 3G/4G CARDS are universal.



9. A variety of exterior designs can enhance the image of the city, add color to the city and attract people to stop.



10. Build a smart city to facilitate citizens' travel.



Product parameter

Unit Module Item Parameter
Model Number P6-8S
Module size 192mm*192mm
Pixel pitch 6mm
Pixels Density 27777点/m2
Pixel configuration 1R1G1B
Package mode SMD3535
Pixel resolution 32dots(W)*32 dots(H)
Max Power 22W
Module thickness 22mm
Weight 0.56kg
Drive type Constant drive
Scan mode 1/8scan
Port type hub75
Brightness of white balance ≥6000cd/m2

LED

Cabinet

Dimension 576mm*576mm
Monomer Module Number 9
Power supply 5V/80A*1 pcs or 5V60A 1pcs
Thermal discharge fan 1pcs
Pixel per cabinet 96mm*96mm
Best viewing distance 6M~40M
Best viewing angle 160°(W) 120°(H)
Temperature

存贮storage:-35℃~+85℃

工作working:-20℃~+50℃

Relative humidity 10%-95%
Thickness 125mm
Power Working voltage AC220V±10%
Average Power consumption 480W/㎡
Max.Power consumption

≤1200W/㎡



Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

Driving device Constant drive IC
Refresh frequency ≥1200HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥9000hours
Fire rate Grade one
Display Mode ≥800*600/1024*768

High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor 0High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor 1High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor 2

Work principle

High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor 3

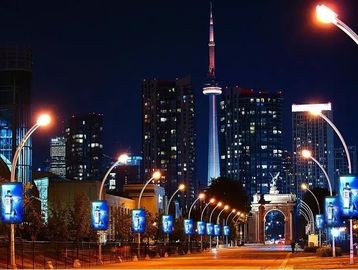

Our project

High Brightness Led Display Billboard 3G Wifi Street Light Advertising Pole Outdoor 4

Our company
MELTON OPTOELECTRONICS co LTD. Is located in Jiada Industrial Area, Tangtou Rd,Shiyan Town,Bao'an DistitShenzhen city, Guangdong province,China., which covers an area of over 3500 square meters, Droductionworkshop 2500 square meters. With 10 high-speed SMT machine, and automatic production technoloay isadopted to ensure the quality of the product. Annual production of 86000 square meters. Annual sales of 200million yuan. Is a set research and development, production, sales, service as one of the LED display high-techenterprises. Company's main door inside and outside the full color LED display screen, supporting all kinds ofiron,aluminum, chemical fiber, such as housing. In the small distance between hd display and outdoor highlighted the domestic leading technology.
After service
Technical service
(1) Provide installation training, be able to achieve the system installation and maintenance;
(2) We are responsible for the training of your staff's use;
(3) 1.5% Spare parts free of charge which are complete module or power supply, through training, the user can easily replace the spare parts, so as to ensure the normal operation of the system;
(4) Warranty: 2 years
