Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM

Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM
Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM

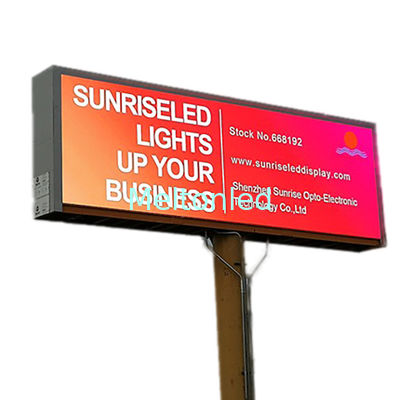

Large Image :  Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM

Product Details:
Place of Origin: Guangdong China
Brand Name: Melton
Certification: CE ROHS
Model Number: P6-8S
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD517.93-USD532.74 per sqm
Packaging Details: Wooden case or flight case package
Delivery Time: 5-15days
Payment Terms: T/T, L/C, D/A
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Product Name: Fixed Led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM Usage: Indoor And Outdoor Advertising
Pixels: 6mm Brightness: 5000cd/sqm
Warranty: 2 Years Module Size: 192*192mm
Life Span: 100000hours Application: Indoor And Outdoor Advertising
Power Supply: 110V~220V AC Cabinet Size: 960*960mm
Refresh Rate: 1920Hz-3840Hz
Highlight:

digital advertising billboards

,

outdoor advertising led display

Outdoor Waterproof P8 Fixed Advertising Video Screen SMD LED Display Billboard Out of Home Advertising Pantalla

renta de pantallas led parameter
Pixel Information Pixel Pitch 8mm
Pixel Density 15625 Pixels/m2
Pixel Configuration 1R1G1B
LEDs Brand Red: Silan/ Epistar / Cree
Green:Silan/ Epistar / Cree
Blue: Silan/ Epistar / Cree
LEDs Wavelength Red: 615 nm - 625 nm
Green: 520 nm - 535 nm
Blue: 465 nm - 475 nm
LED Module Module Size 256 mm (Width) × 128 mm(Height) = 0.033/m²
Module Resolution 32 pixels(Width) × 16 pixels(Height) = 512 pixels
LED Cabinet Cabinet Size 1024 mm(Width) × 768mm(Height) = 0.79/m²
Cabinet Resolution 128 Pixels(Width) × 96 Pixels(Height) = 12288 Pixels
Total QYT Module Per Cabinet 4 Modules(Width) × 6 Modules(Height) = 24 Module
Cabinet Weight 38 kgs
Cabinet Material Steel or aluminum
Power Input Voltage 110-240V AC, 50/60Hz
Max Power Consumption 1000 Watt/ m²
Avg. Power Consumption 500 Watt/ m²
Viewing Brightness ≥7000cd/m2
Brightness Uniformity Luminance Discrepancy < 4%
Colors 16777216
Grey Scale(Level) 4096
Slot Between Neighboring Modules < 0.5 mm
Best Viewing Angle Horizontal:120°/ Vertical:60°
Viewing Distance 15-200 Meters
Ambint Conditions Temperature Range Storage:-40 °c to +85°c.; Working:-20°c to +60°c
Operating Humidity 10%-90%RH
Ingression Protection Grade Front Side: IP65 (Resist spraying of water gun directly);
Back Side: IP54 (Resist Rain)
Processing Scanning Mode Real Pixel , 1/4 Scan
Refresh Frequency 180HZ-600HZ, Adjustable
Signal Input DVI, Composite Video for Live Video
Supported Networking Through LAN/WAN, RS 232/RS485
Controller Linsn, Xixun, DB-star, Nova-star,etc.
Other Life Span 80,000 - 100,000 Hours



Advantages

1.High brightness:Above 8500 nits/sq.m


2.High Refresh Rate:≥1920Hz,Take clear picture with mobile phone

3.Ultra Thin Design:the thickness of cabinet with backdoor is only 12cm

4.Fast and easy to assemble:There have fast lock between cabinet side



Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM 0

Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM 1

Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM 2

Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM 3

Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM 4

Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM 5

Fixed led Advertising Billboard Video Screen Outdoor Waterproof P8 5000CD/sQM 6







Applications

Outdoor Advertising use, applicable to stadium, commercial purpose, bank, stock market, savings,quay, shopping mall, bus station, telecommunication, police, monitor, school,restaurant,hotel, pub, firm, ect.
