Best price Outdoor Full Color LED Display Advertising Board P6 P8 P10

Best price Outdoor Full Color LED Display Advertising Board P6 P8 P10
Best price Outdoor Full Color LED Display Advertising Board P6 P8 P10

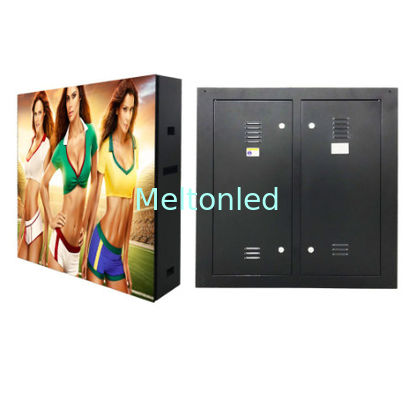

Large Image :  Best price Outdoor Full Color LED Display Advertising Board P6 P8 P10

Product Details:

Place of Origin: China
Brand Name: MLED
Certification: CE/ RoHS
Model Number: P6

Payment & Shipping Terms:

Minimum Order Quantity: 10 Square Meter
Price: USD 480-520 Per Square Meter
Packaging Details: Carton box / Poly wooden case/ Flight case
Delivery Time: 1-7Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 Pieces Per Month
Detailed Product Description
Product Name: Best Price Full Color Outdoor Led Advertising Board P6 P8 P10 Outdoor Led Display Panel Panel Size: 192mm*192mm
Brightness: 6500cd/sqm IP Rate: IP65/IP65
Driving Method: 1/8Scan Constant Current LED Chip: Cree + Nichia + Epistar + Kinglight + Nationstar
Viewing Angle: H120 V120 Module Size: Customized
High Light:

video display boards

,

high resolution led display

Best Price Full Color Outdoor Led Advertising Board P6 P8 P10 Outdoor Led Display Panel

Product description

1. Energy conservation and environmental protection, outdoor LED display not only energy conservation and environmental protection, all-weather work, can fully adapt to a variety of outdoor harsh environment, with anti-corrosion, waterproof, moisture-proof, lightning, shockproof and other characteristics.



2. Low power consumption, LED power consumption is quite low, generally speaking, the working voltage of LED is 2-3.6v. The operating current is 0.02-0.03a. That is, it consumes no more than 0.1w of electricity.



3. Long service life. Under the right current and voltage, the service life of LED can reach 100,000 hours. Considering the use environment of outdoor LED display, the service life of the display is generally less than 10 hours due to environmental factors, but about 60,000 hours can be achieved.



4. Seamless splicing, high refresh rate, outdoor LED display compared with LCD splicing, there is no gap, the display effect is more beautiful, and outdoor LED display has a relatively high refresh frequency, the whole picture is more delicate, the overall visual effect is more shocking and gorgeous!


Unit Module Item Parameter
Model Number P6-8S
Module size 192mm*192mm
Pixel pitch 6mm
Pixels Density 27777dots/m2
Pixel configuration 1R1G1B
Package mode SMD3535
Pixel resolution 32dots(W)*32 dots(H)
Max Power 22W
Module thickness 22mm
Weight 0.56kg
Drive type Constant drive
Scan mode 1/8scan
Port type hub75
Brightness of white balance ≥6000cd/m

LED

Cabinet

Dimension 576mm*576mm
Monomer Module Number 9
Power supply 5V/80A*1 pcs or 5V60A 1pcs
Thermal discharge fan 1pcs
Pixel per cabinet 96mm*96mm
Best viewing distance 6M~40M
Best viewing angle 160°(W) 120°(H)
Temperature

storage:-35℃~+85℃

working:-20℃~+50℃

Relative humidity 10%-95%
Thickness 125mm
Power Working voltage AC220V±10%
Average Power consumption 480W/㎡
Max.Power consumption

≤1200W/㎡



Current ≤20mA(single LED)
Control system CPU Pentium4 or above P4
Operation system WIN98/2000/NT/XP/WIN7
Control method Synchronization

Main technical

parameter

Driving device Constant drive IC
Refresh frequency ≥1200HZ
Grey scale/colors 4096gray level/16.7M colors
MTBF ≥9000hours
Fire rate Grade one
Display Mode ≥800*600/1024*768



Control way



1.The synchronous control is to realize the real-time transmission of the signal of the display card to the Ktoper LED display screen. The hundred LED large screen and the computer monitor are displayed synchronously and belong to the online control.

Connection mode: computer and control card are connected via network cable.

Advantages: unlimited storage of program content (depending on the computer hard disk space), multiple display effects, easy editing of program content, good picture display effect, support animation, streaming media (video) playback.

Disadvantages: computer needs to run at all times.

Suitable place: most of them are installed in the fixed place with less movement. Such as square, train station and other prominent locations;



2.Asynchronous control is the computer will edit the content sent to the control card, by the asynchronous control card to control the display screen content, belongs to offline control.

Connection mode: R232 to 485 connection, WIFI, 4G, usb flash drive

Advantages: can be used offline, computer closed or other software does not affect the display.

Disadvantages: limited program content storage, less special effects display, editing content is not convenient. Picture display effect is poor, do not support streaming media playback.

Applicable place: it is mainly used to transmit simple text, pictures and other documents, most of which are installed on the mobile and small display screen of door head, supermarket, bus, taxi and so on.



Module & Cabinet

Best price Outdoor Full Color LED Display Advertising Board P6 P8 P10 0Best price Outdoor Full Color LED Display Advertising Board P6 P8 P10 1

Best price Outdoor Full Color LED Display Advertising Board P6 P8 P10 2

Product applications

Outdoor led screen can work under the sun for high brightness and large viewing angle with a certain function of a windbreak, rainproof and waterproof., Which is widely used as outdoor advertising and information media at station, square and shopping mall. Outdoor led screen can be divided into a pillared screen, wall-mounted screen, and floor-standing screen, etc.

Best price Outdoor Full Color LED Display Advertising Board P6 P8 P10 3

Our service

We have an excellent customer service system with a well-trained, strong and skilled service team to provide customers with a comprehensive pre-sales service, product services and after-sales service.

Our customer service department has more than a dozen highly skilled and experienced technical support engineers, who are all in charge of the technical support of all LED display products we provide all over the world.

We are continuously improving upon our level of service and quality to quickly and effectively meet customer needs and guarantee their benefits and interests.



Service concept
We believe in taking the initiative, maintaining honesty and trustworthiness, which means we will respond quickly to customer questions and do everything possible to meet customer demands.



Service content
1. 24-hour hotline service, including counseling and technical guidance.
2. On-line service.
3. Failure maintenance of LED panels.
4. Free professional technical training
5. Paid software upgrade.
6. Warranty service.
7. Engineering technical service.



Warranty period
Each of our LED display products comes with at least three years warranty and a lifetime maintanance services.
