Product Details:
Payment & Shipping Terms:
|
| Name: | P3.91 Indoor Stage Rental Hanging Curved LED Flexible Video Led Wall Display Screen | Refresh Rate: | >1920HZ |
|---|---|---|---|
| Driver IC: | ICND2038S | Brightness: | >2000cd |
| Scan: | 1/13s | ||
| High Light: | rental led display,led video rental |
||

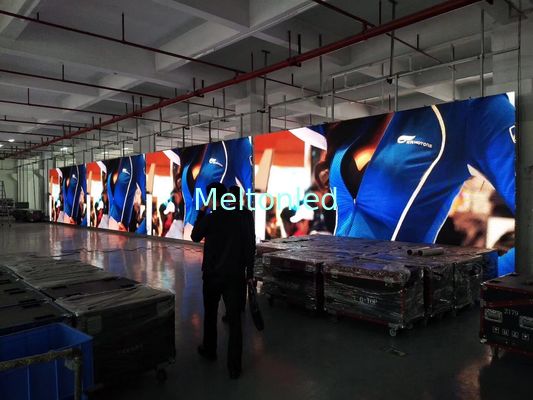

P3.91 indoor Stage Rental Hanging curved LED flexible video Led wall display screen
Parameter:
| Specifications of the module | ||||
| Technical parameters | UNIT | Parameters | ||
| Pixel pitch | MM | 3.91 | ||
| Panel size | MM | L250*H250*T13 | ||
| Physical density | /M2 | 65410 | ||
| Pixel configuration | R/G/B | 1,1,1 | ||
| Driving method | Constant current 1/13scan | |||
| LED Encapsulation | SMD | 2121 | ||
| Display resolution | DOTS | 64X64=4096 | ||
| Module weight | KG | 0.32 | ||
| Module port | HUB75-B | |||
| Module working voltage | VDC | 5 | ||
| Module consumption | W | 30 | ||
| Specifications of LED cabinet | ||||
| Cabinet size | mm | 500*500 / 500*1000 | ||
| Cabinet weight | 5kg | 5.5 / 10.8 | ||
| Cabinet resolution | dots | 128*128 / 128*256 | ||
| Viewing angle | Deg. | 140° | ||
| Option distance | M | 3-50 | ||
| Driving device | 16016 | |||
| Every square metre module | PCS | 16 | ||
| Maximum power | W/ M2 | 1000 | ||
| Frame Frequency | HZ/S | ≥60 | ||
| Refresh frequency | HZ/S | ≥600 | ||
| Equilibrium brightness | CD/ M2 | ≥1500 | ||
| Working environment temperature | 0C | -10~60 | ||
| Working environment humidity | RH | 10%~70% | ||
| Display working voltage | VAC | AC46~54HZ,220V±15%/110V±15% | ||
| Colour temperature | 8500K-11500K | |||
| Gray scale/color | ≥16.7M color | |||
| Input signal | RF S-Video RGB etc | |||
| Control system | PCTV nonlinearity card,DVI display card,Linsn control system | |||
| Mean free error time | HOURS | >5000 | ||
| Life | HOURS | 100000 | ||
| Lamp failure frequency | <0.0001 | |||
| Antijam | IEC801 | |||
| Safety | GB4793 | |||
| Resist the electricity | 1500V last 1min No breakdown | |||
| Steel box weight | KG/ M2 | 40(standard steel box) | ||
| Earth leakage current | mA | |||
| IP rating | The back IP40,The front IP50 | |||
| Steel box size | mm | L768Xh768x80 | ||
1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs.
2.Thin cabinet:the thickness isonly10 CM, the space of the screen is small , and the entire screen will be more beautiful.
3. Flat screen: smooth surface error is under 0.2cm, it can remove the mosaic phenomenon .effectively.
The effect of the display will be more clear and exquisite.
4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.
5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
6. Full compatible: new structure design which can demand the indoor displays’ require.
LED Stage screen/ LED rental screen
Advantages:
1. Ultra light: only 8kg, one people could carry by one hand. It is very easy to install.
2. Ultra thin: using die casting aluminum, with high intensity, strong tenacity, high precision , and not easy to be out of shape, and could save transportation cost.
3. High precision: using electromechanical processing the size could be accurate to 0.1mm
4. Compatible: new structure design. Hanging and sitting installation are available.
5. Fast install: using fast at up and down left and right of cabinets to connect. Only take 10 seconds to install a cabinet.
6. Reliable: high intensity and hardness; with good heat radiation effect.
7. Cost:Low installation cost and low power consumption, saving operate and labor cost.
FAQ
1.Packing: Anti-shaking wooden cabinet /Air flight case/strong carton
2.Shipping port: Shenzhen, China
3.Shipping ways and freights are quoted according to your requests
4.Delivery time:5-15 working days
5.Payment Term: T/T, Trade Assurance,Western Union,Moneygram etc
6.Long working life:In the Maintenance period, free of all maintenance charges. After Maintenance period, only charge the material costs fees
1.Reply your inquiry within 24 working hours.
2. Well-trained, experienced staffs answer all your questions.
3.Can offer technique sharing with you by videos or photos.
4.Special discount are offered based on order quantity.
5.Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.
6.Your sales area, design and all your private information will be protected.
