Product Details:
Payment & Shipping Terms:
|

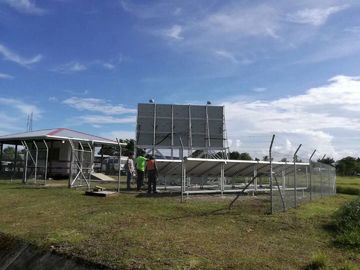

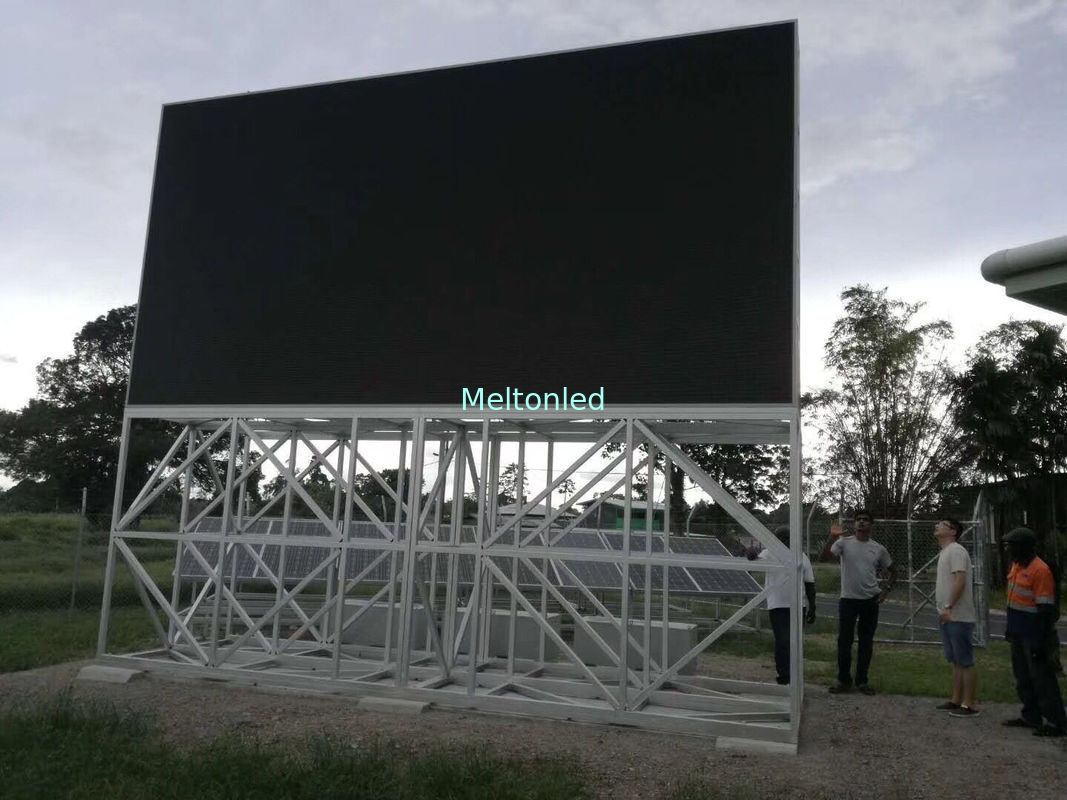

| Product Name: | Outdoor P5.95mm P6.25mm RGB High Brightness Led Billboard Display With Solar Panels | Usage: | Outdoor |
|---|---|---|---|
| Tube Chip Color: | Full Color | Pixel Pitch: | 5.95mm |
| Pixel Composition: | 1R1G1B | Waterproof: | IP65 |
| Brightness: | 6500cd | ||
| High Light: | ledoutdoor billboards,outdoor advertising led display,high brightness Led Billboard Display |
||
P5.95 OUTDOOR SMD 3IN1 TECHNICAL PARAMETERS
|
Unit Module |
Item | Parameter |
| Model Number | M-5.95--7S | |
| Module size | 250mm*250mm | |
| Pixel pitch | 5.95mm | |
| Pixels Density | 28224dots/m2 | |
| Pixel configuration | 1R1G1B | |
| LED Package mode | SMD2727 | |
| Pixel resolution | 42dots(W)*42 dots(H) | |
| Max Power | 35W | |
| Weight | 0.65kg | |
| Drive type | Constant drive | |
| Scan mode | 1/7scan | |
| Port type | HUB75-A | |
| Brightness of white balance | ≥4500cd/m2 |
|
LED Cabinet |
Dimension | 500mm*500mm |
| Monomer Module Number | 4 | |
| Power supply | 5V/40A*1pcs | |
| Thermal discharge | fan 1pcs | |
| Pixel per cabinet | 84*84 | |
| Best viewing distance | 6M～25M | |
| Best viewing angle | 160°(W) 120°(H) | |
| Temperature |
storage:-35℃～+85℃ working:-20℃～+50℃ |
|
| Relative humidity | 10%-95% | |
| Thickness | 65mm |
|
Power |
Working voltage | AC110～220V±10% |
| Average Power consumption | 168W/㎡ | |
| Max.Power consumption | ≤560W/㎡ | |
| Current | ≤20mA(single LED) | |
|
Control system |
CPU | Pentium4 or above P4 |
| Operation system | WIN98/2000/NT/XP/WIN7 | |
| Control method | Synchronization | |
|
Main technical parameter |
Driving device | Constant drive IC |
| Refresh frequency | ≥1920HZ | |
| Grey scale/colors |
4096,16.7M 4096gray level/16.7M colors |
|
| MTBF | ≥9000hours | |
| Power switch | Automatic switch | |
| Display Mode | ≥800*600/1024*768 |
Our service for you:
1. Pre-sales: collect customers' all information/accoding to customer's requiements,select technical scheme,considering the availability,usability,maintainability,choose best solution for customers.
2. On sales: strictly follow the production plan,professional installation instruction,on-site field debugging.guidance using the led display
3. After sales: collect complaint information(including all kinds of contacts),in time confirm complaint information,analysis problem and give solutions
Payment and Shipping
Many different payment terms are available for Babbitt.
Babbitt is willing to help you arrange the international transportation to your places and countries via different modes of transportation.
